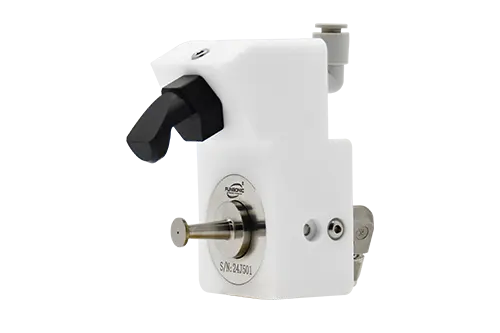

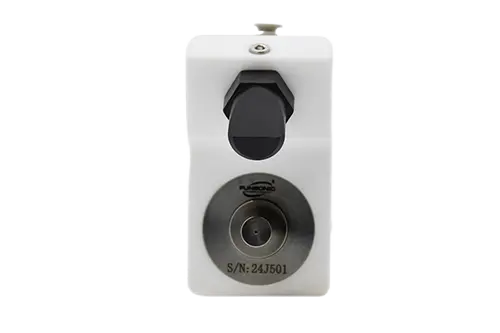

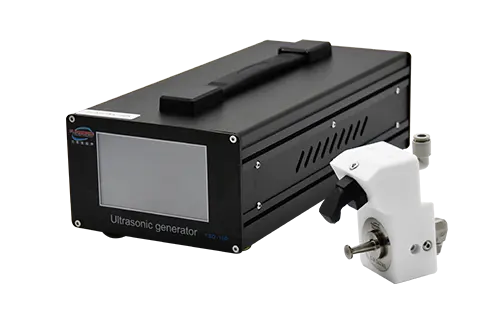

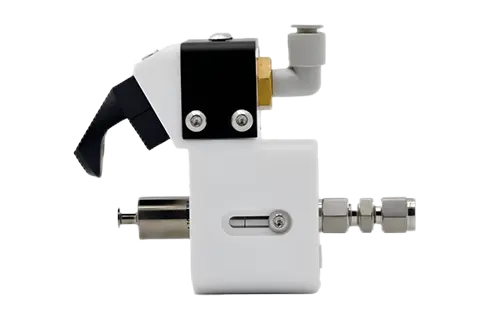

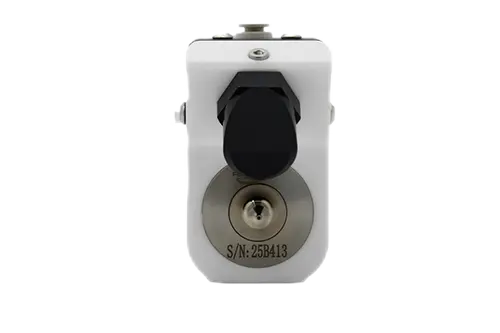

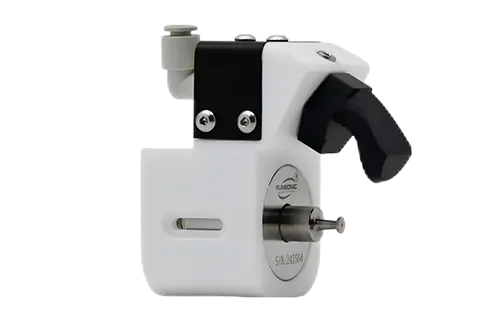

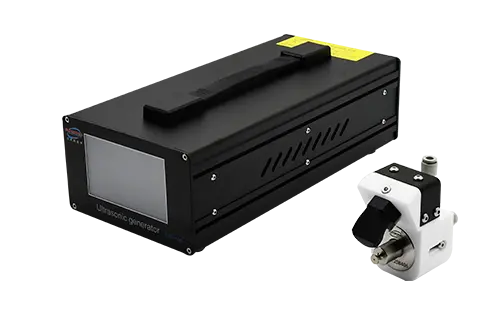

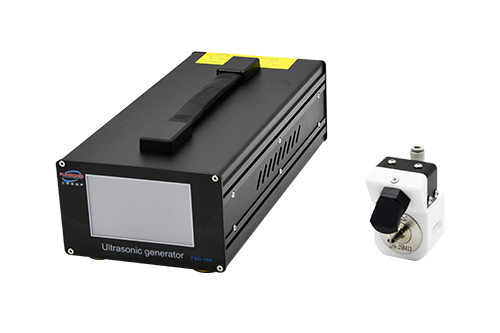

Ultrasonic Widemist Spray Nozzle

◆ Atomized particle size range (μm): 10-100

◆ Spray width (mm): 40-120

◆ Spray flow (ml/min): 0.5-20

◆ Spray height (mm): 50-150

◆ Liquid viscosity (cps): ＜30

◆ Particle size (μm): ＜20

◆ Diversion pressure (Mpa): ＜0.05

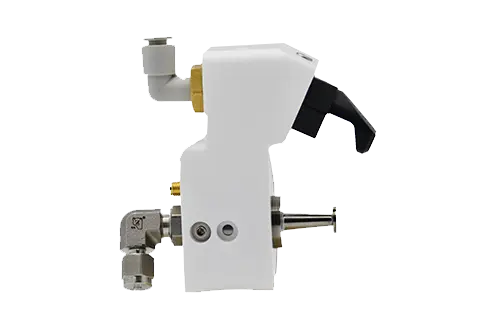

50Khz

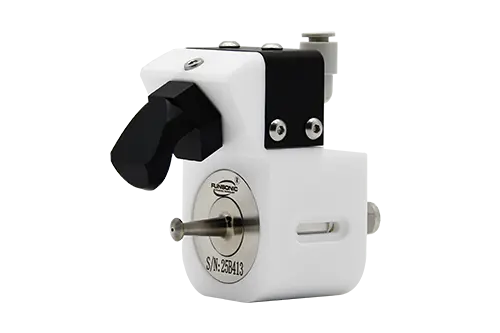

60Khz

100Khz

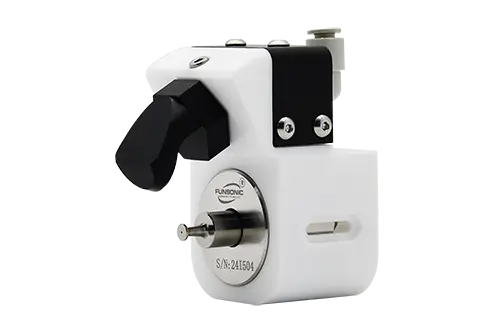

120Khz

Short Description

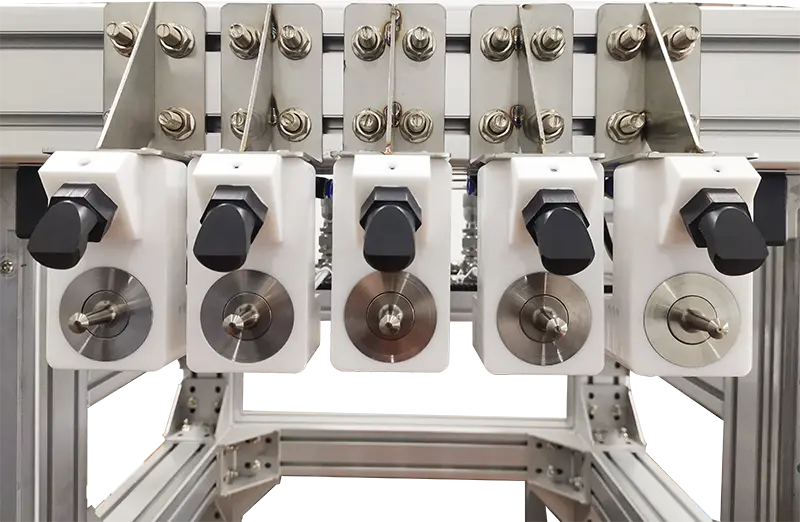

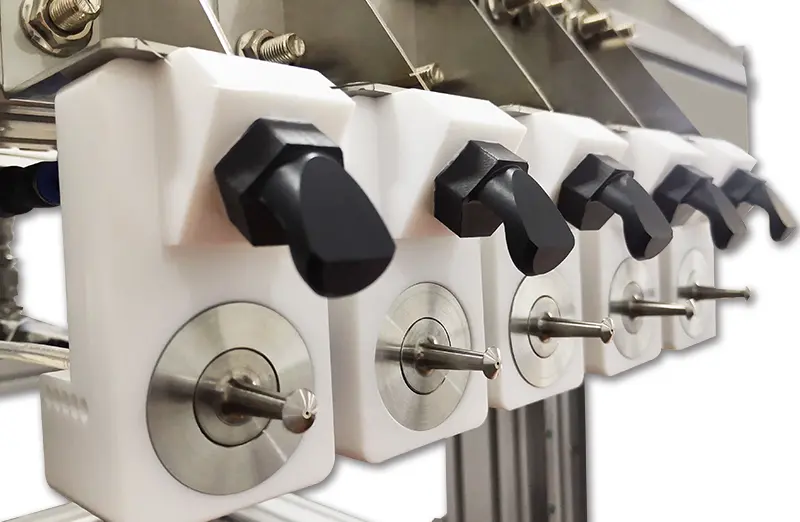

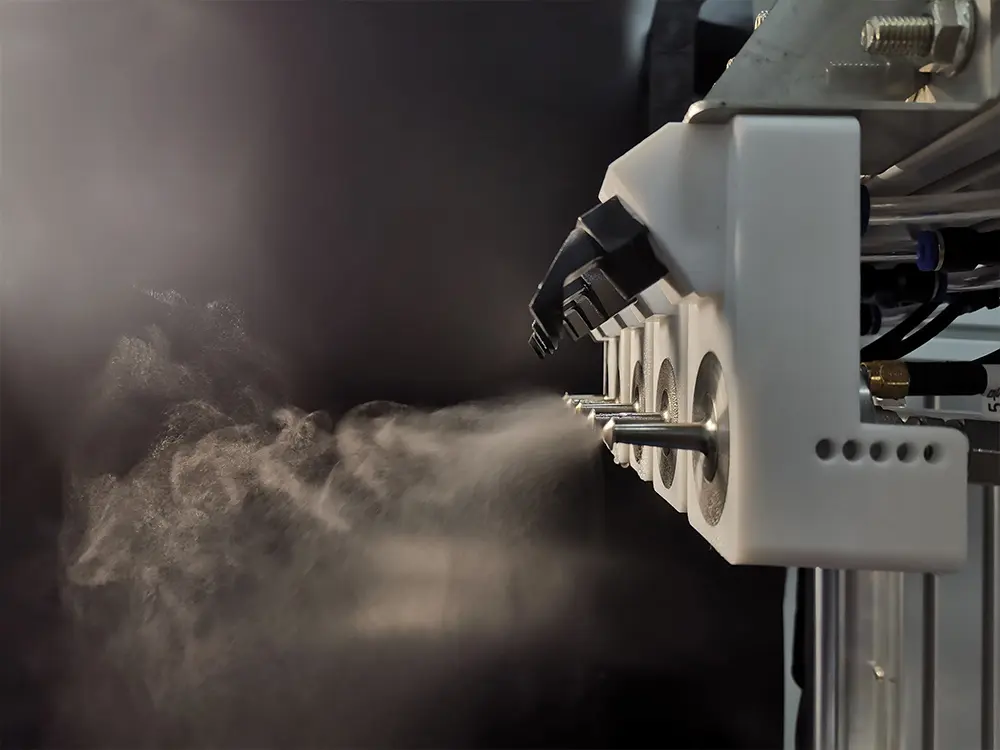

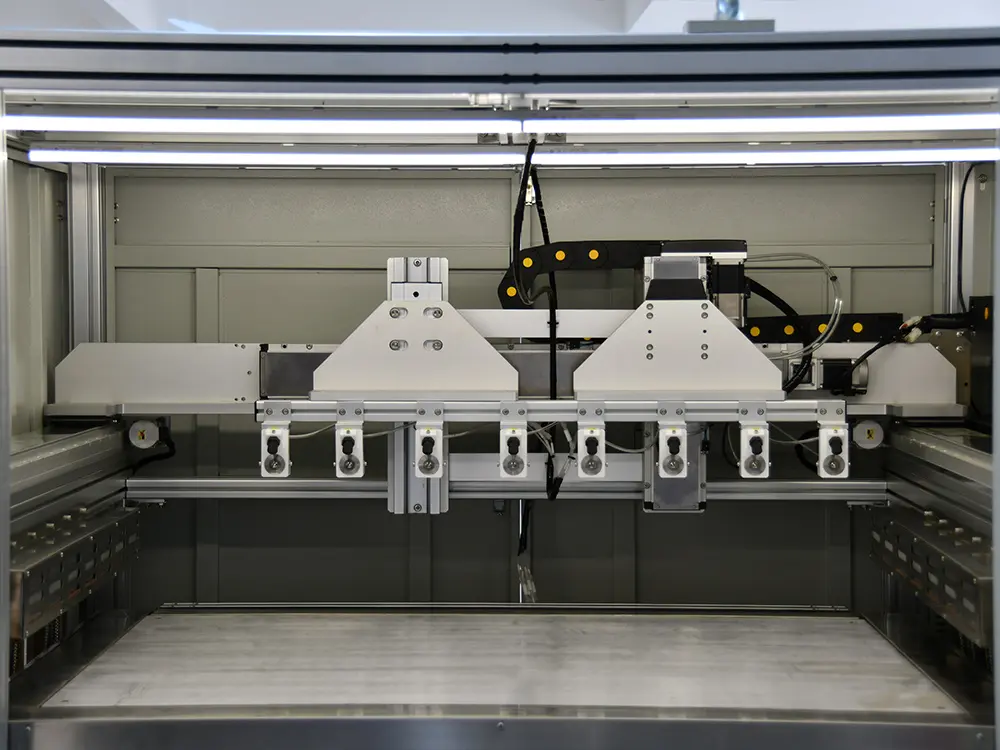

The wide width ultrasonic atomizing nozzle is combined with a controlled jet from a planar jet guide plate. The atomized spray is immediately entrained in the airflow on the atomized surface of the nozzle, forming a fan-shaped spray style. The speed of air flow is controllable, thus allowing low or high impact of atomized spray on products or substrates. This multifunctional air forming system can spray patterns up to 12 centimeters, depending on the distance from the substrate. In wide area applications where multiple nozzles are used in series, the width is not limited.

Advantages

◆ Large surface spraying, spraying width: 40-150mm

◆ Uniform coating: uniformity>95

◆ Save raw materials: The utilization rate of raw materials is over 85%, which is four times that of traditional two fluid spraying

◆ High precision control of coating thickness: capable of preparing coatings ranging from 20nm to tens of microns, with precise control of coating thickness

◆ The atomized particles are uniform, and the spray flow is extremely low

◆ Can be sprayed intermittently or continuously

◆ Will not block the nozzle

◆ Anti corrosion nozzle

◆ High precision controllable spraying

Application

The widemist ultrasonic nozzle has a larger spraying width and is mainly suitable for various medium and large area spraying applications. It can be used for various applications including float glass spraying, textile spraying, fuel cell spraying, proton exchange membrane spraying, fuel cell spraying, membrane electrode spraying, metal plastic sheet, AR anti reflective film spraying, thermal insulation film spraying, superhydrophobic coating spraying, and flux spraying.
