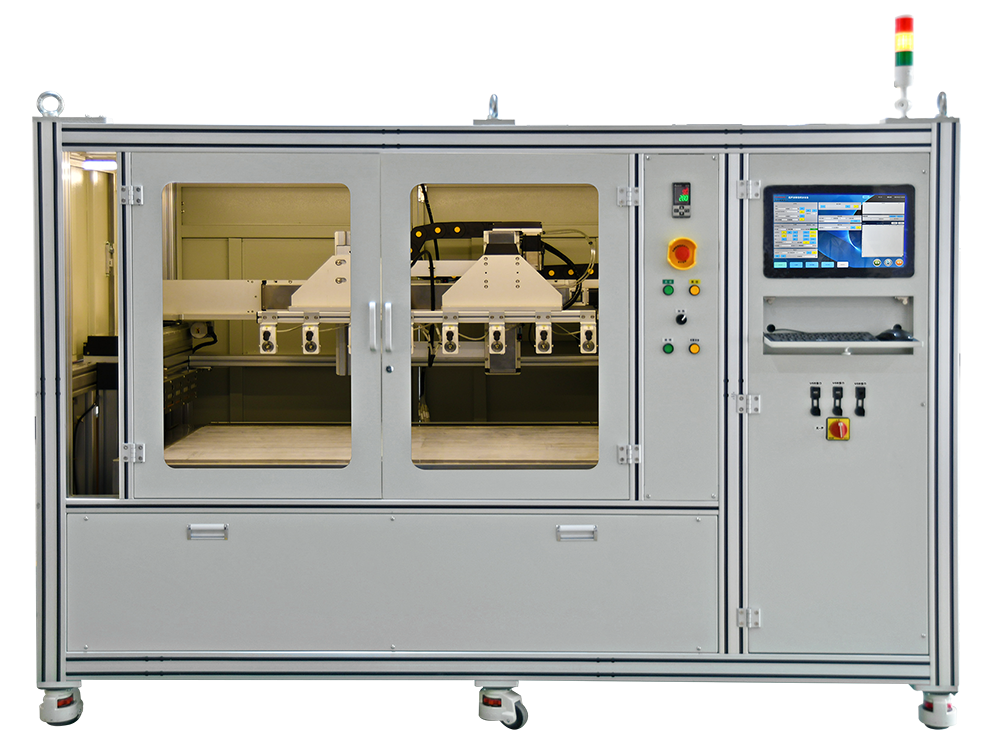

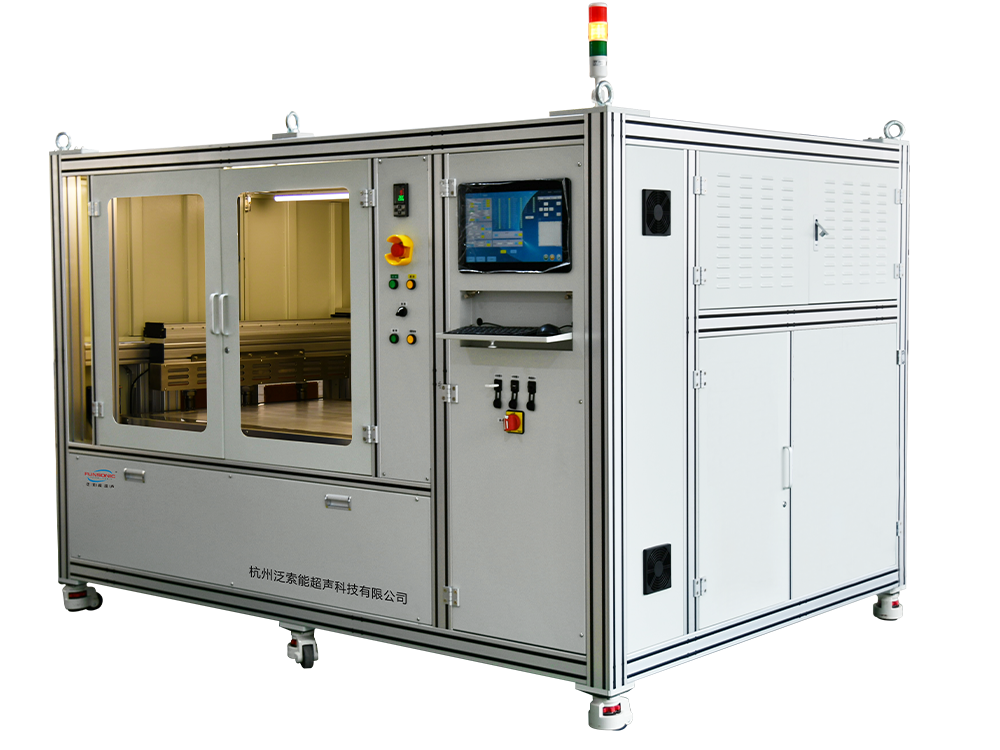

Ultrasonic Production Coating System FS2000-8
Advantage
Product Configuration
-
Conventional Arrangement

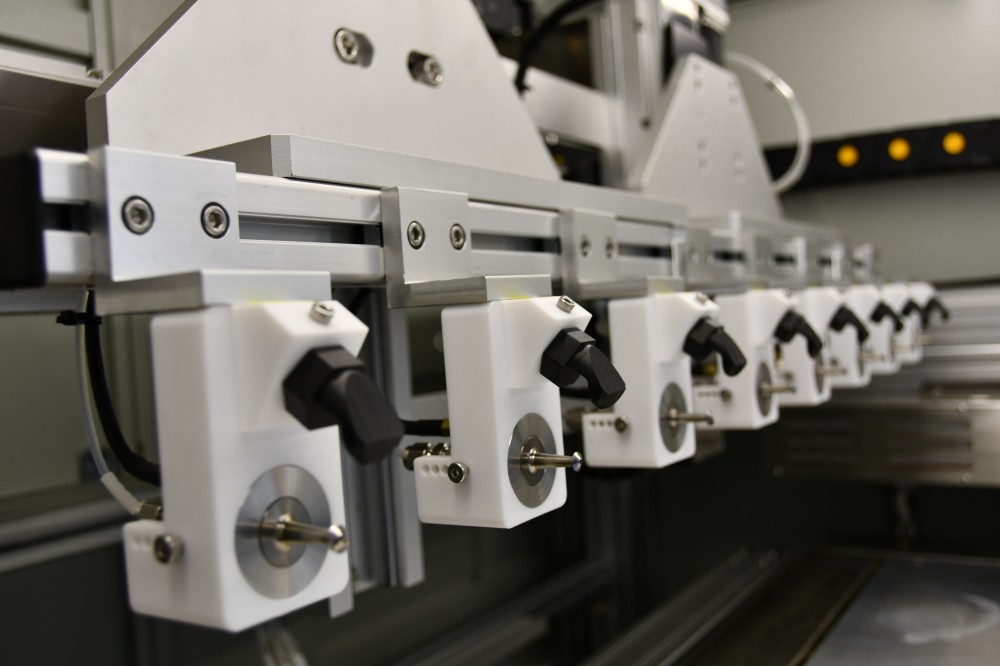

1. Ultrasonic nozzle: optional 20-200Khz multiple nozzle systems

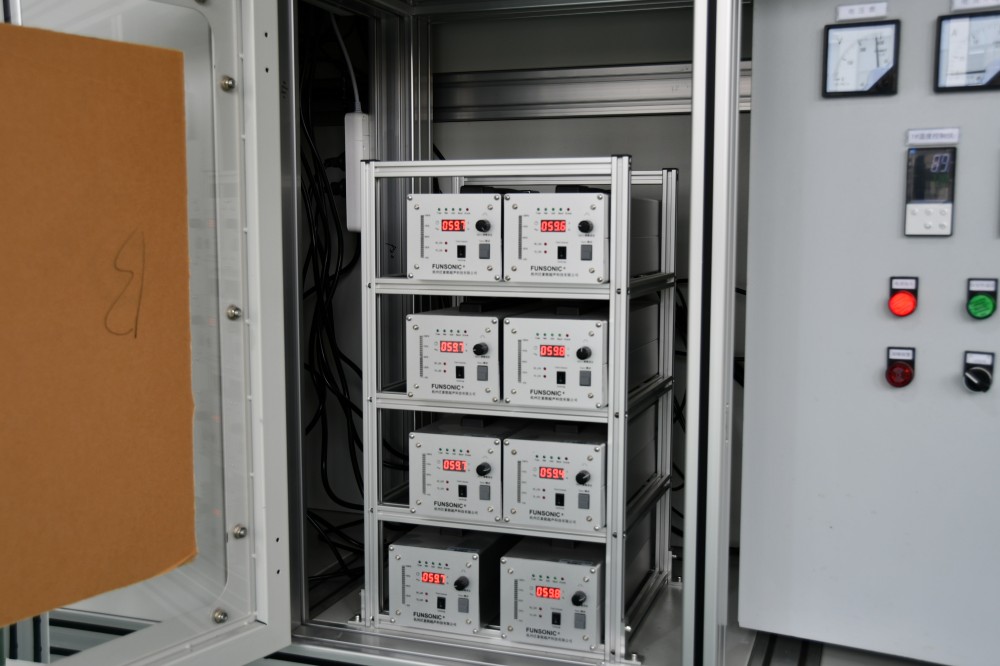

2. Ultrasonic power supply: fully CNC precision power supply, fully intelligent frequency following, frequency tracking, stable performance

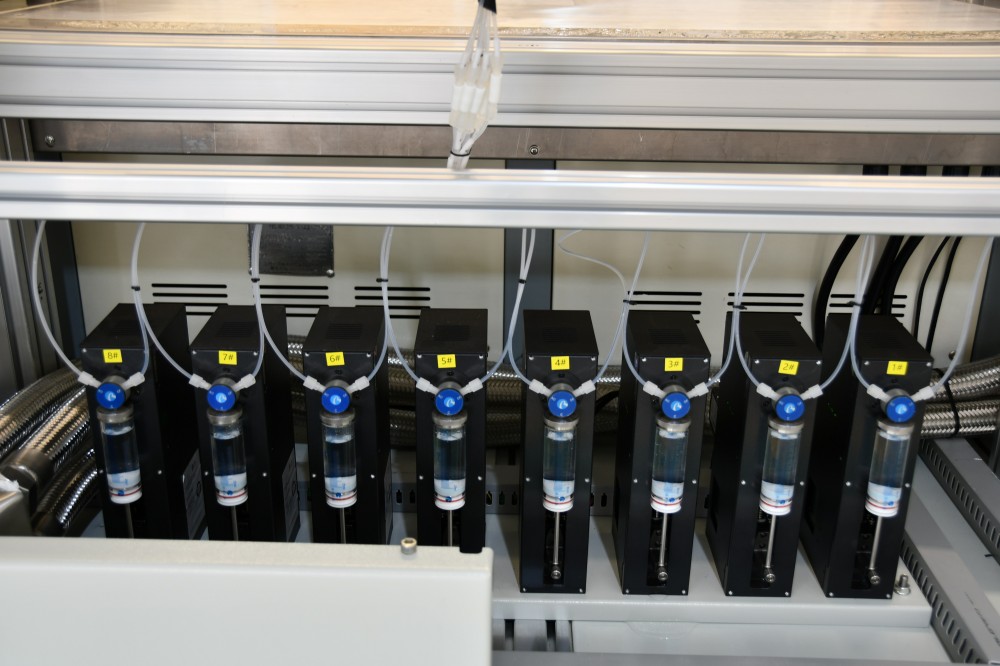

3. Liquid supply equipment: precision injection pump+biological grade sampler, liquid supply accuracy of 0.1 μ L/min

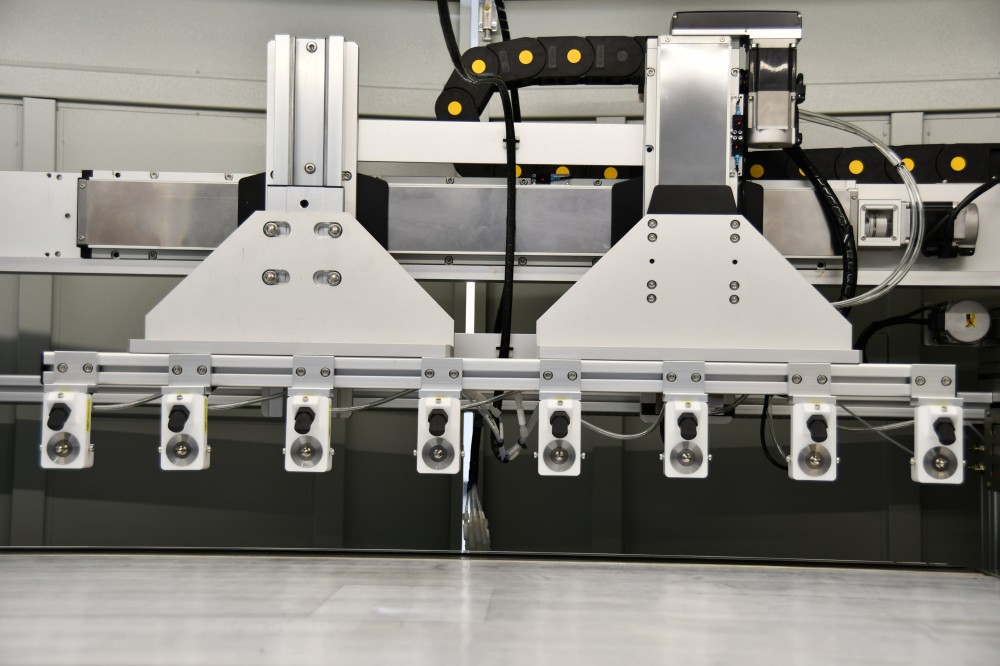

4. Sports system: XYZ three-axis imported servo motor+fully enclosed precision screw module

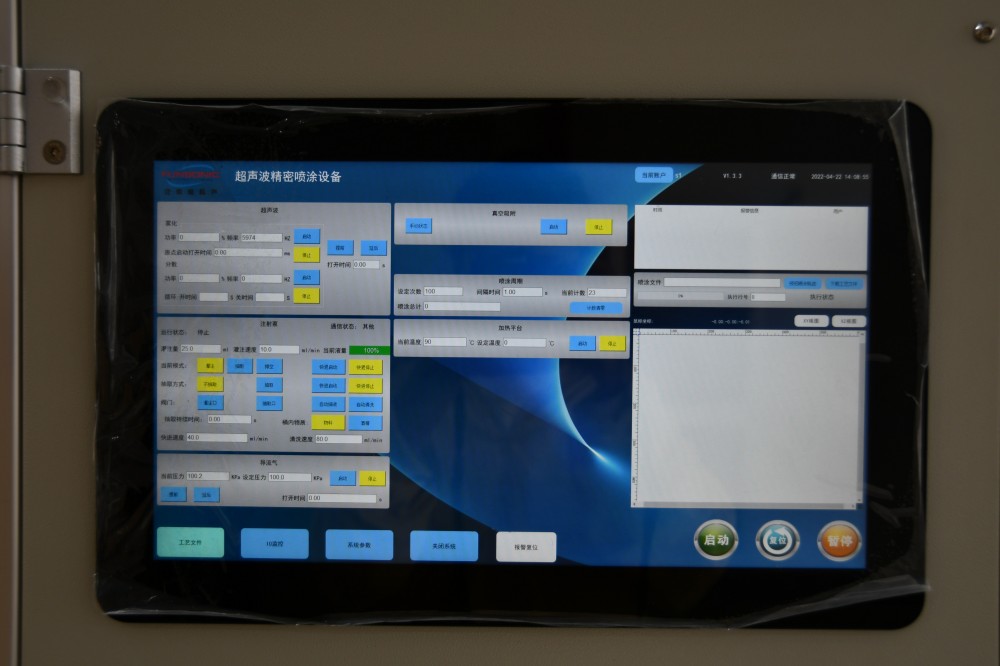

5. Operating System: Based on the Windows system, FUNSONIC independently developed a spraying control system, PLC control, and full-color touch screen
-
Optional Configuration
1. Ultrasonic dispersion liquid supply system: It can continuously disperse and stir nanoparticles during the spraying process, effectively reducing the precipitation phenomenon of the spraying liquid and greatly improving the uniformity of the film layer
2. Heating and drying platform: using aviation aluminum porous platform or precision microporous ceramic platform, precise temperature control of 200 ℃ (higher heating temperature can be customized)
3. Nozzle alignment device: using laser alignment to quickly align the material spraying position.
We can also customize other configurations according to your needs.
Product Application
1. Metal: Ultrasonic spraying machines can be used to spray metal surfaces, such as steel, aluminum alloys, copper, etc. It can provide a uniform coating, enhance the corrosion resistance, wear resistance, and decorative effect of metal surfaces.
2. Plastic: Ultrasonic spraying machines can also be used for spraying plastic products, such as plastic parts, plastic containers, etc. It can achieve high-precision spraying, ensuring the flatness and adhesion of the coating.
3. Ceramics: For ceramic materials, ultrasonic spraying machines can be used to coat ceramic coatings to provide protective properties or decorative effects.
4. Glass: Ultrasonic spraying technology can form a uniform coating on the surface of glass, providing functions such as wear resistance and corrosion resistance, and can also be used for decorative coating of glass.
