Ultrasonic Penetrator Spray Nozzle

◆ Atomized particle size range (μm)：30-80

◆ Spray width（mm）：3-15

◆ Spray flow（ml/min）：0.3-5

◆ Spray height（mm）：1-100

◆ Liquid viscosity（cps）：＜30

◆ Particle size（μm）：＜5

◆ Diversion pressure（Mpa）：/

40Khz

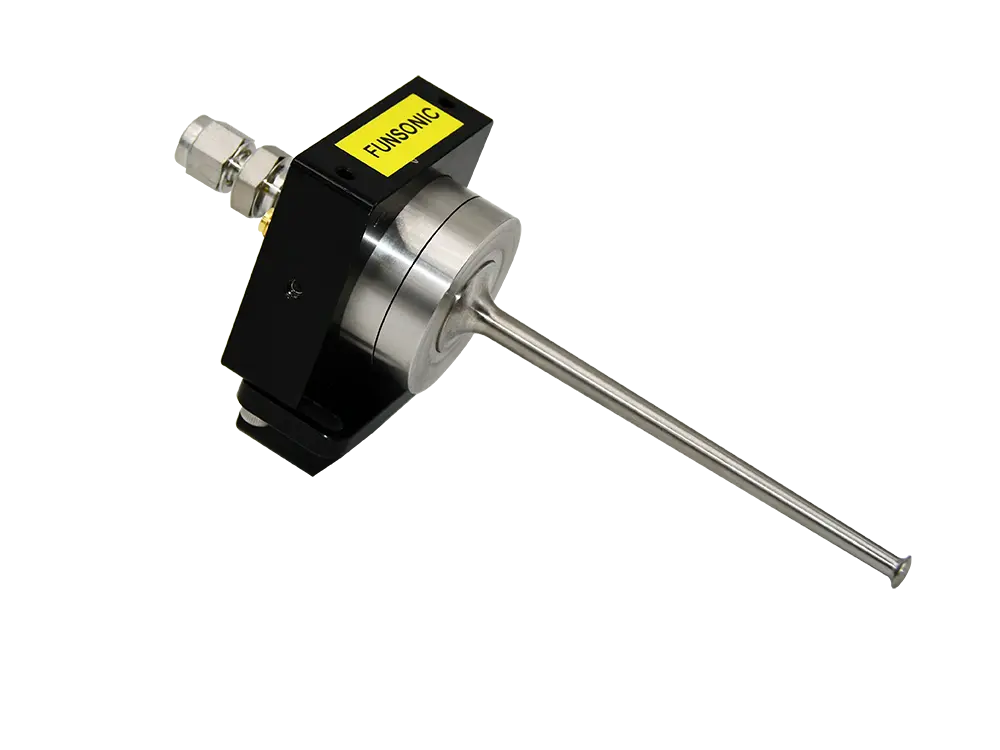

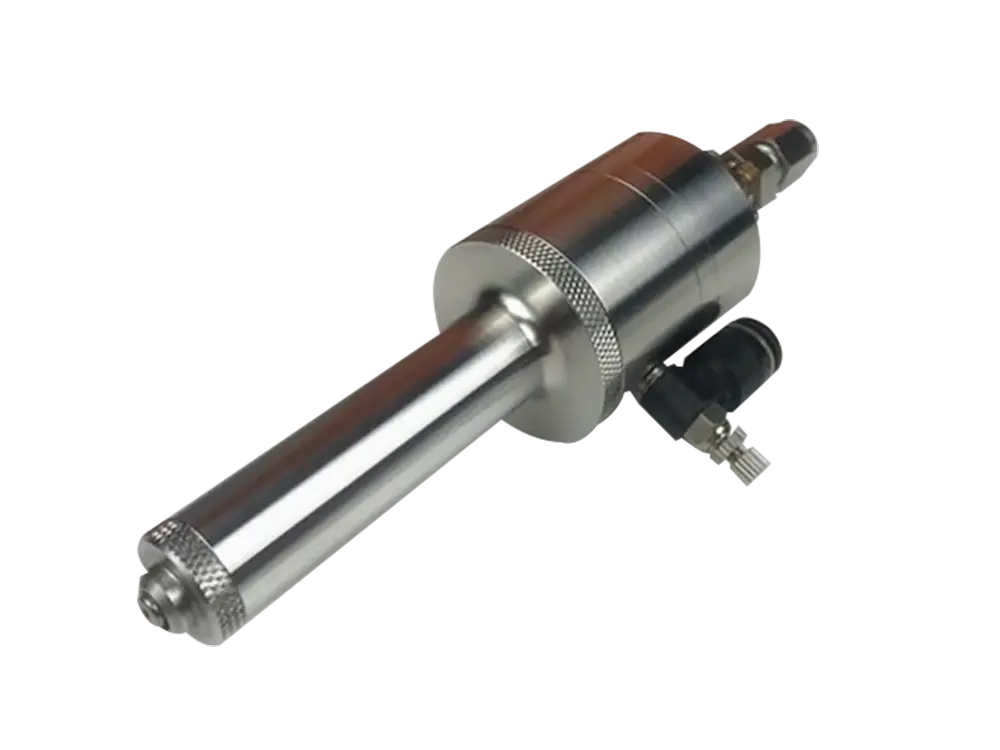

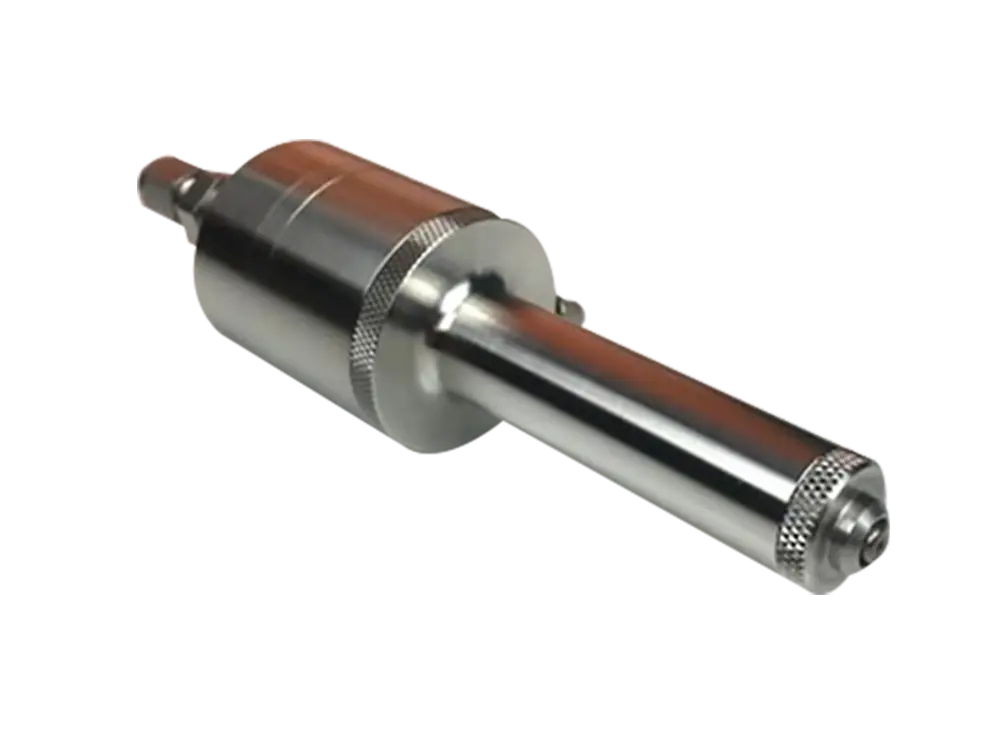

40Khz Long Nozzle

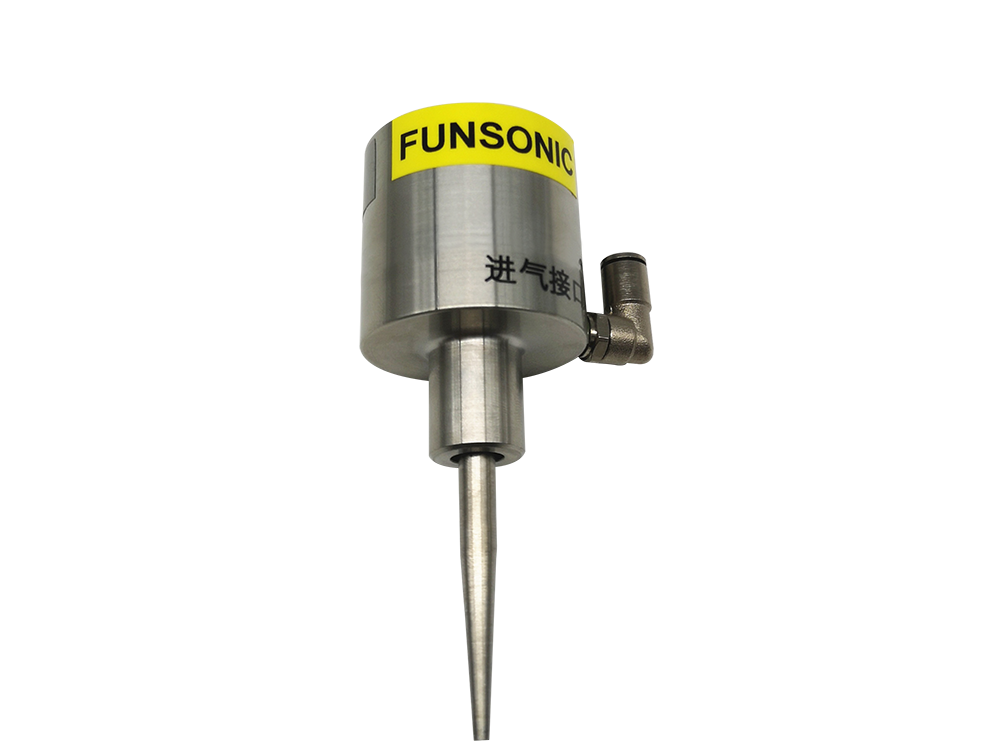

60Khz

Short Description

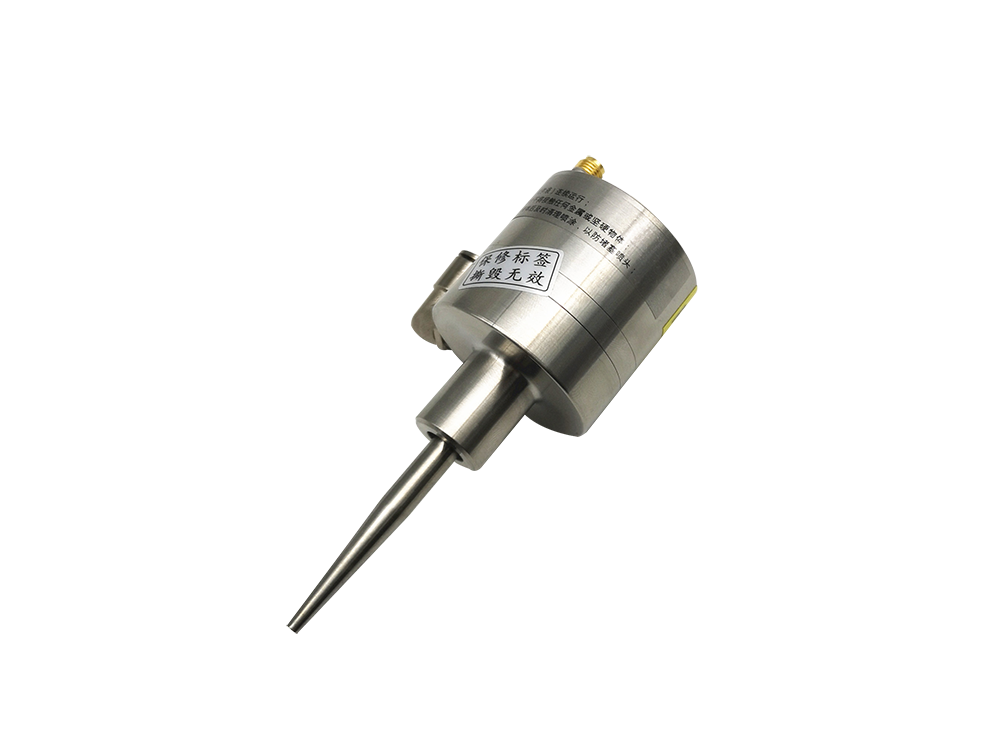

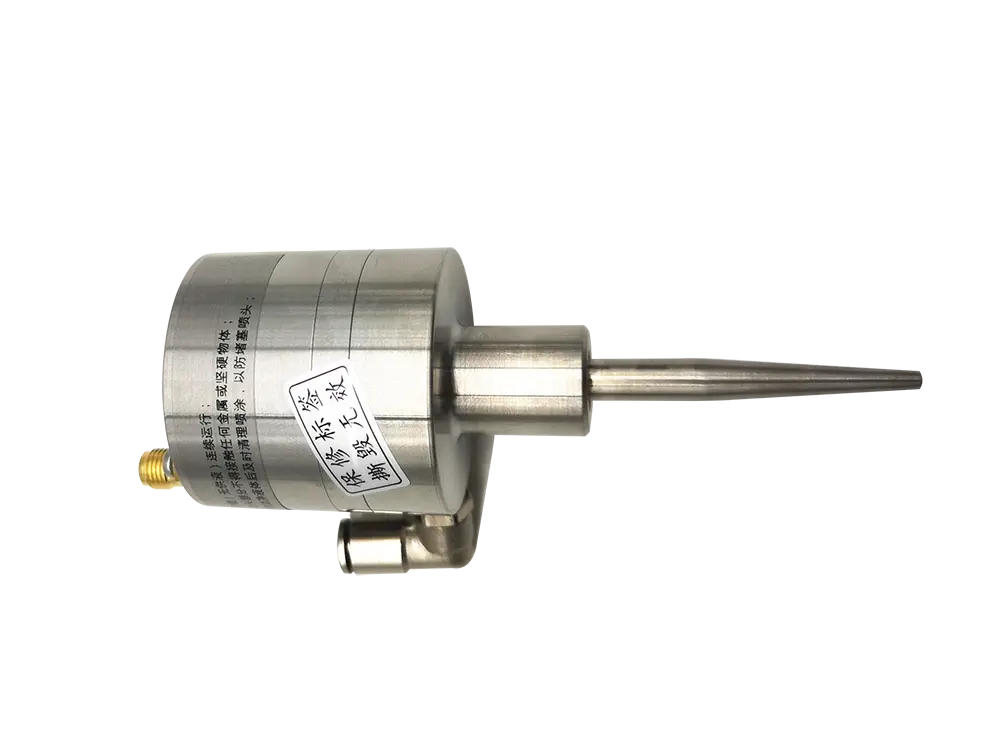

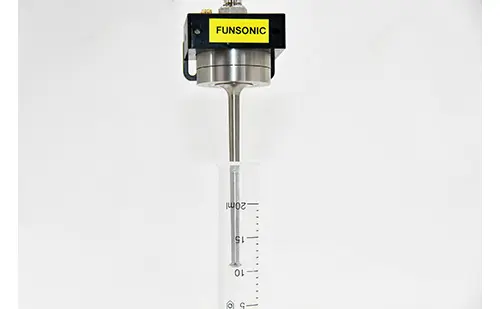

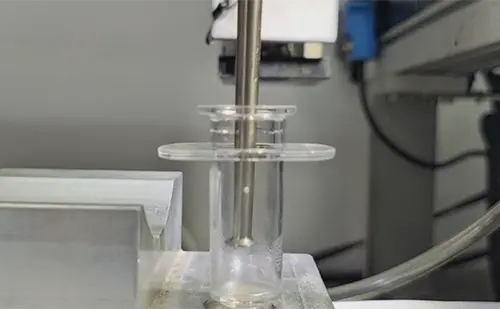

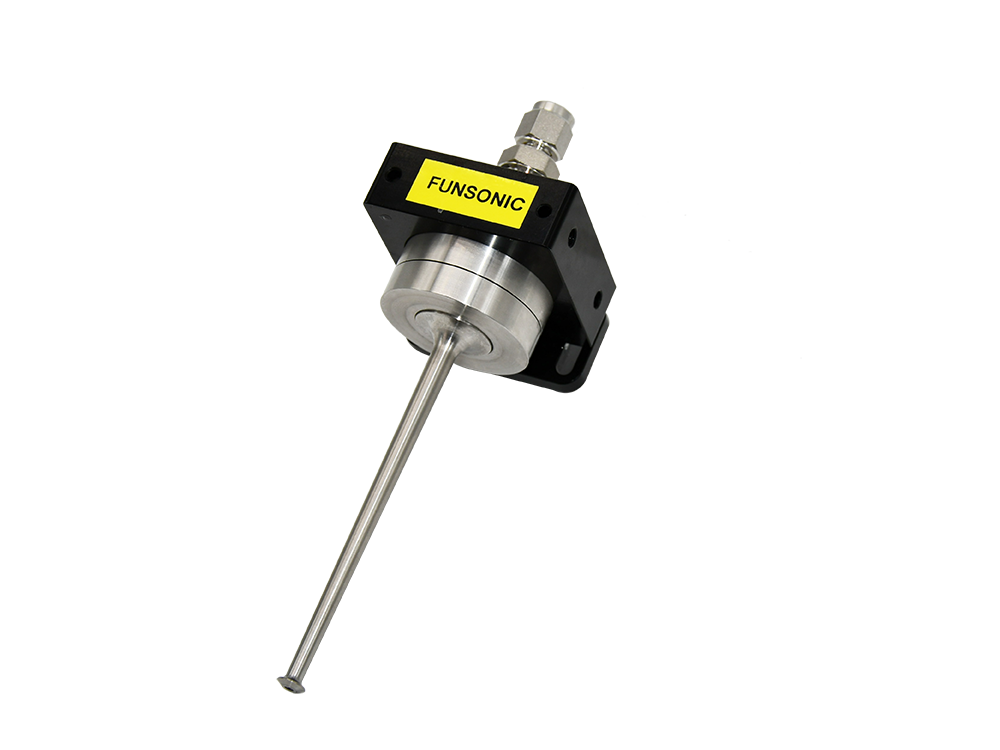

The probe ultrasonic nozzle is an extension of the ultrasonic atomizing nozzle. It adopts ultrasonic atomizing nozzle technology and extends the front end of the nozzle to extend the ultrasonic nozzle into a narrow space for spraying. It is mainly used to probe into the inner wall of the pipe for spraying.

Advantages

◆ Uniform coating: uniformity>95

◆ Save raw materials: The utilization rate of raw materials is over 85%, which is four times that of traditional two fluid spraying

◆ No need for aeration spraying, no splashingCan be sprayed intermittently or continuously

◆ Flow rate ranges from 0.001ml/min to 50ml/min

◆ Won't clog the nozzle

◆ High-precision controllable spraying

Application

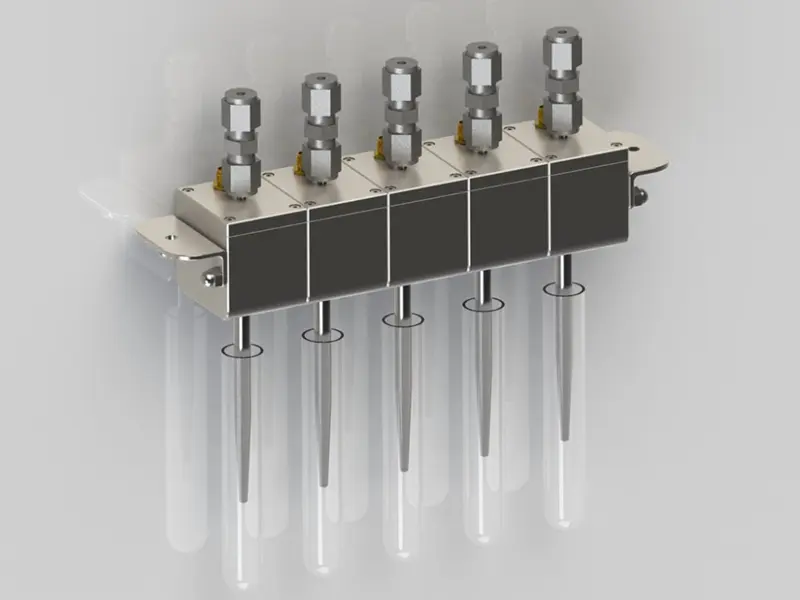

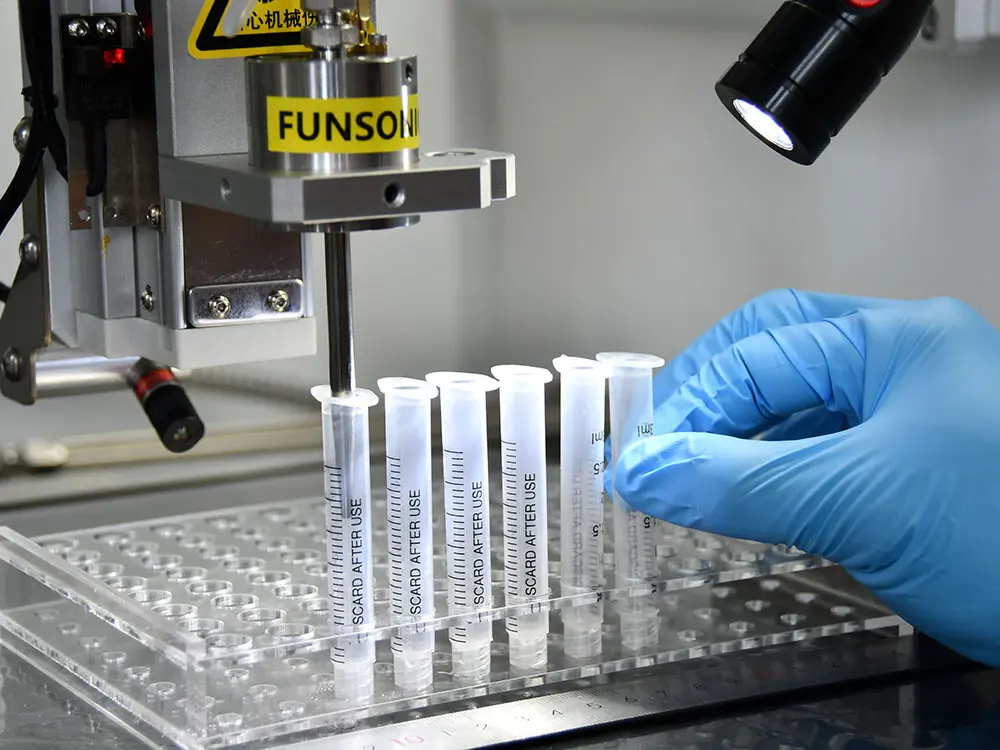

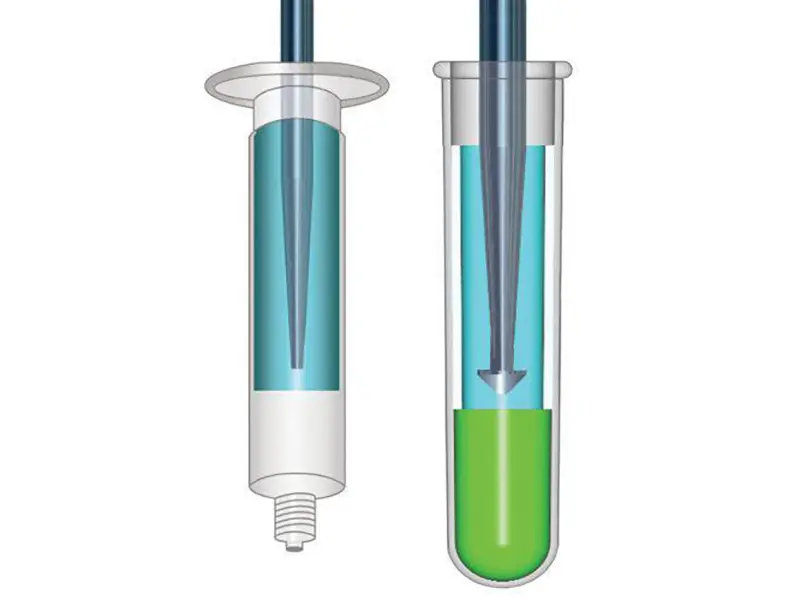

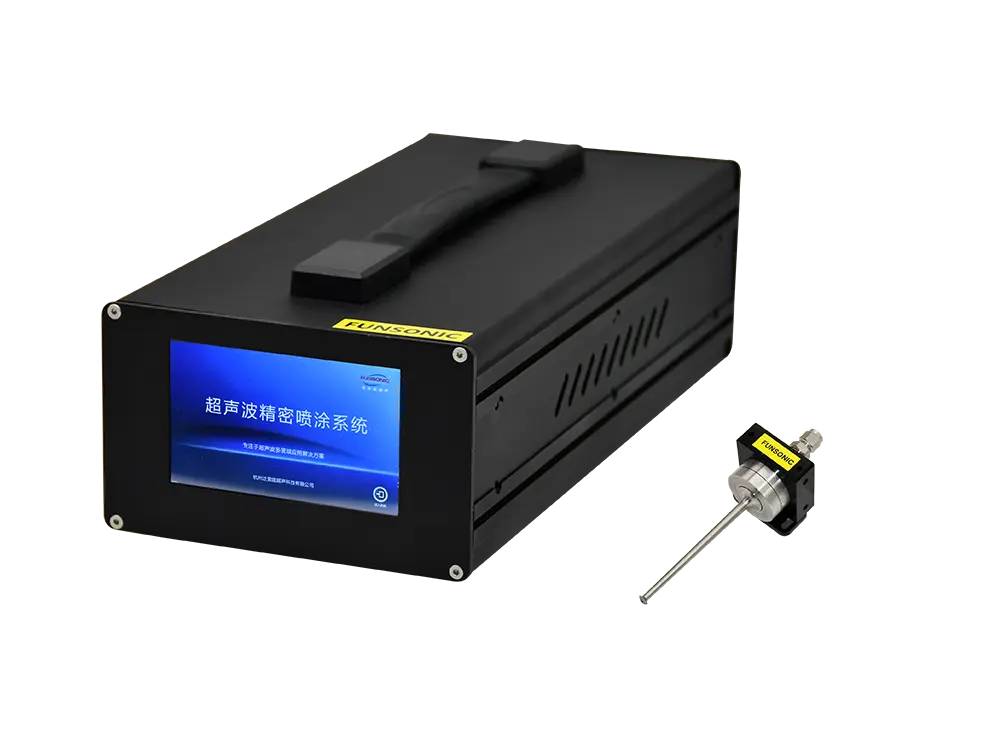

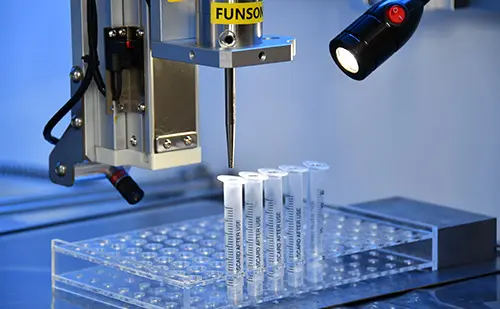

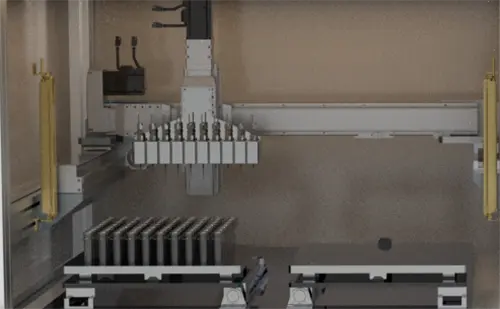

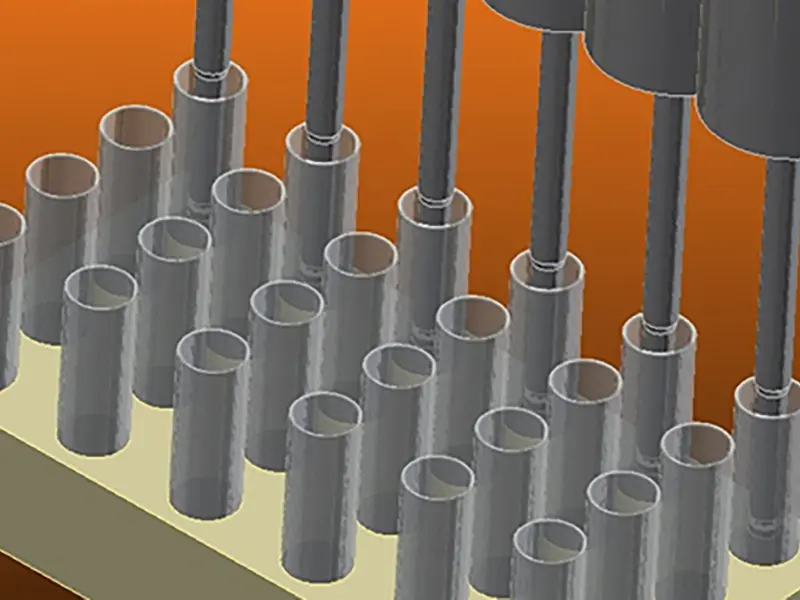

Typical applications include vacuum blood collection tube spraying, syringe silicone oil spraying, etc. FUNSONIC provides a complete ultrasonic spraying solution for vacuum blood collection tube spraying. The controlled ultrasonic nozzle can perform ultrasonic spraying of 5-10 heads in parallel, and the distance between two nozzles is only 25mm, which can be directly used in the existing vacuum blood collection tube production line. Combined with a special precision metering pump, the anticoagulant is evenly sprayed into the inner wall of the vacuum blood collection tube, and the production speed can reach 12,000 tubes per hour.
