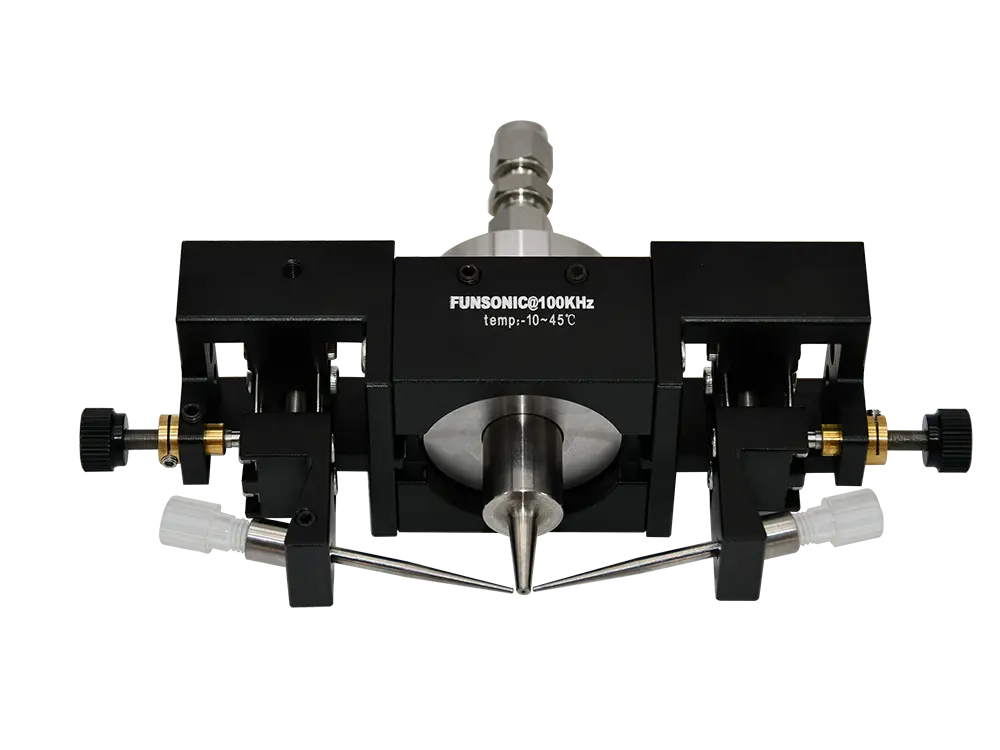

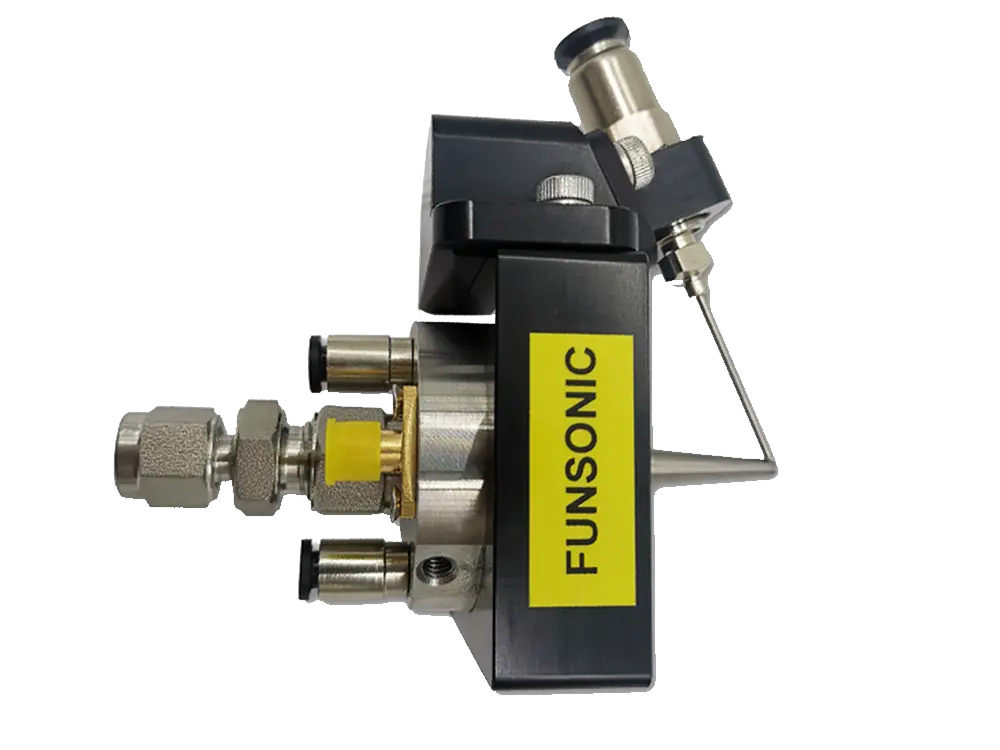

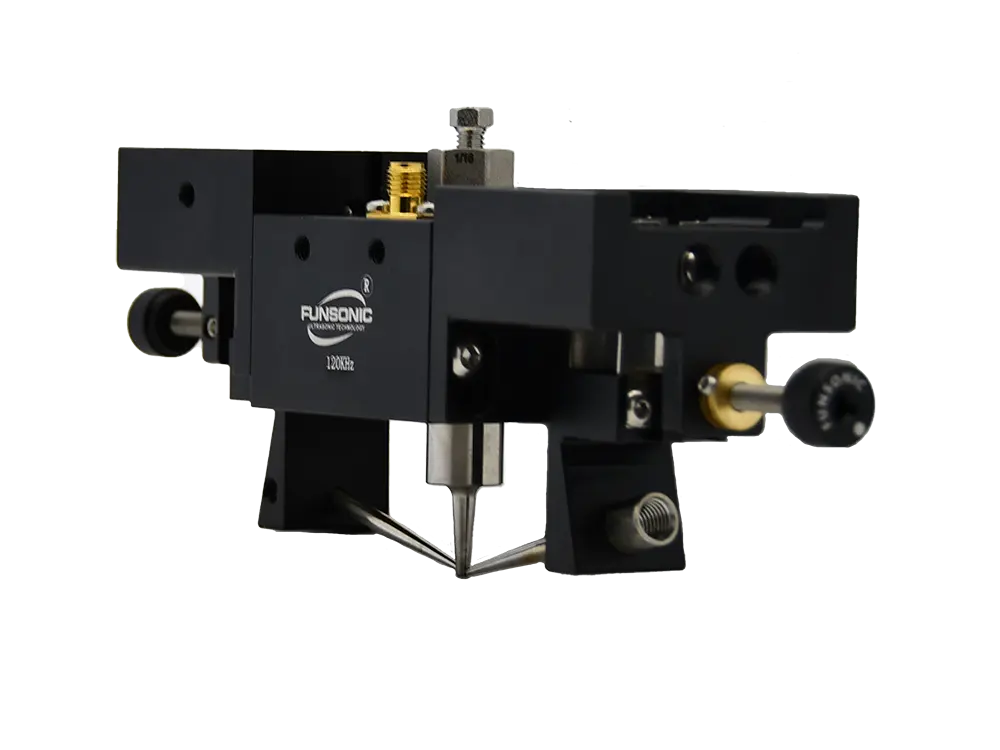

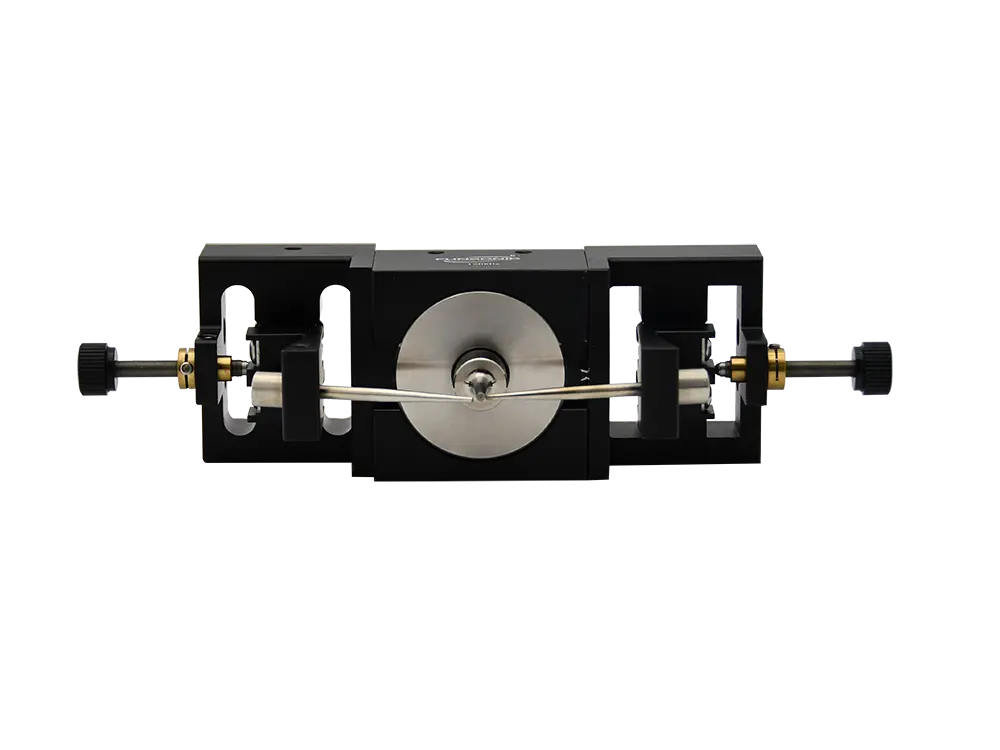

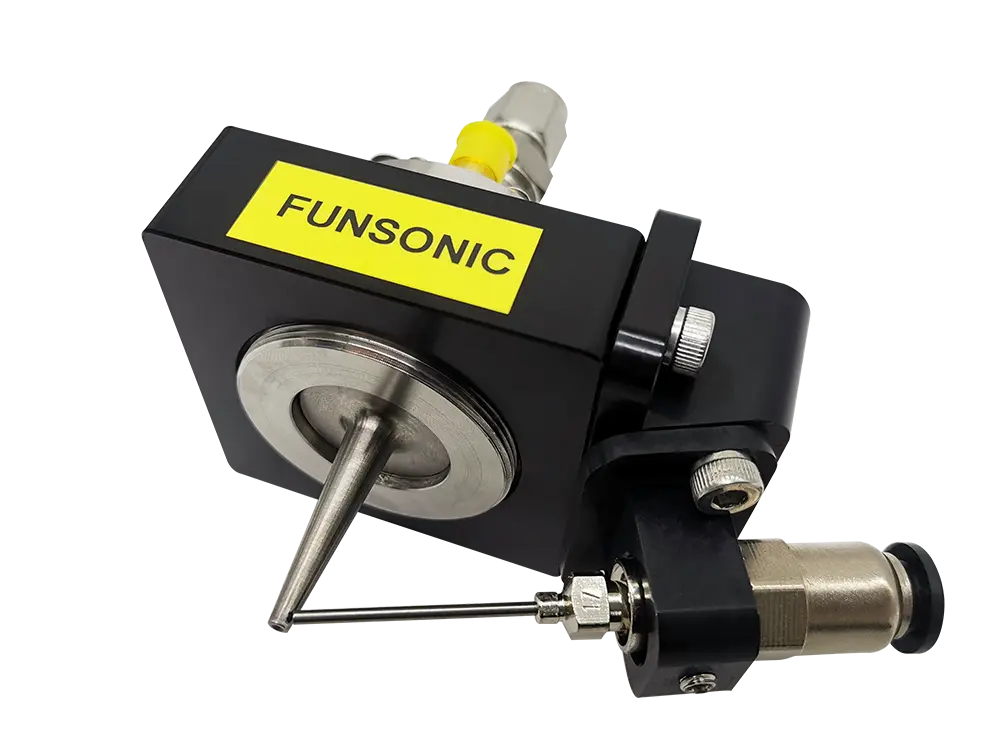

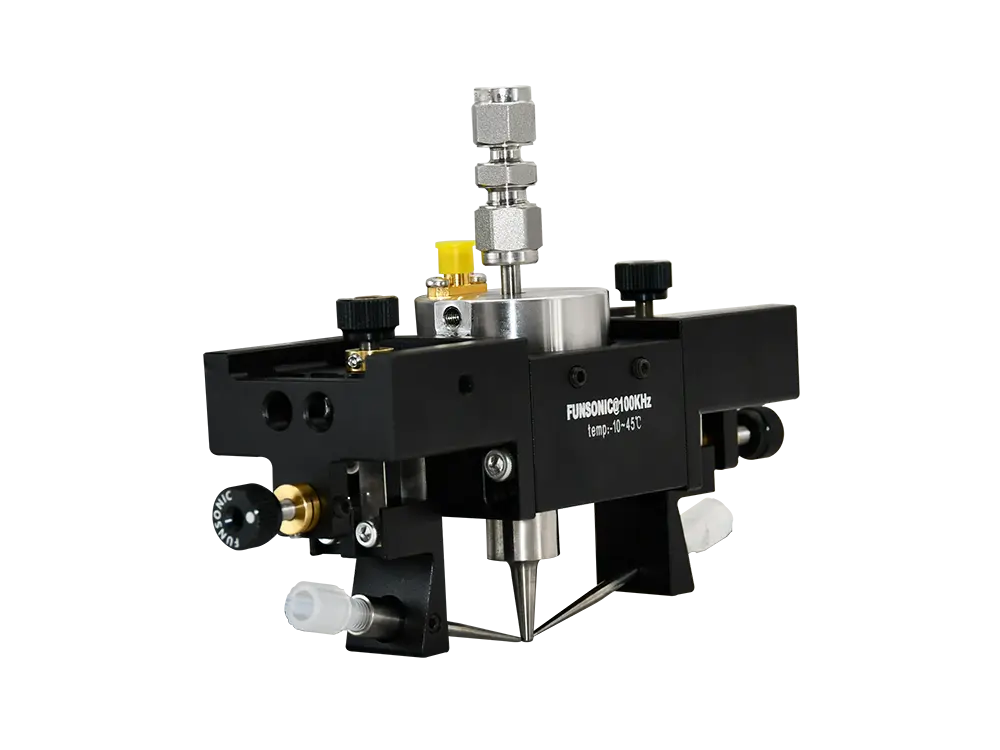

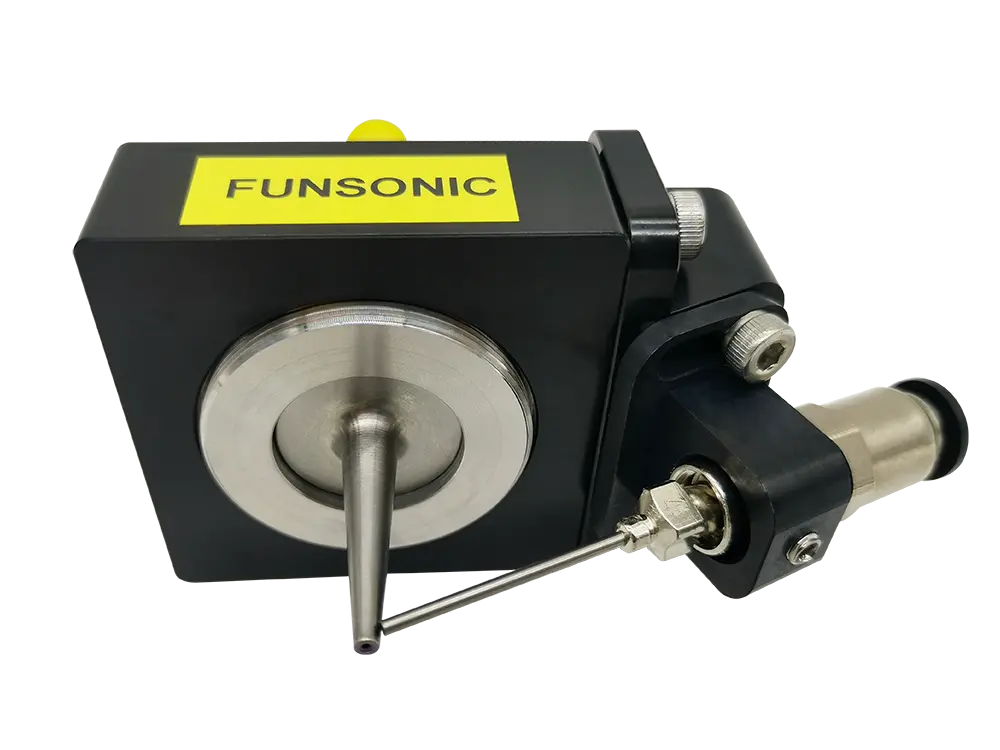

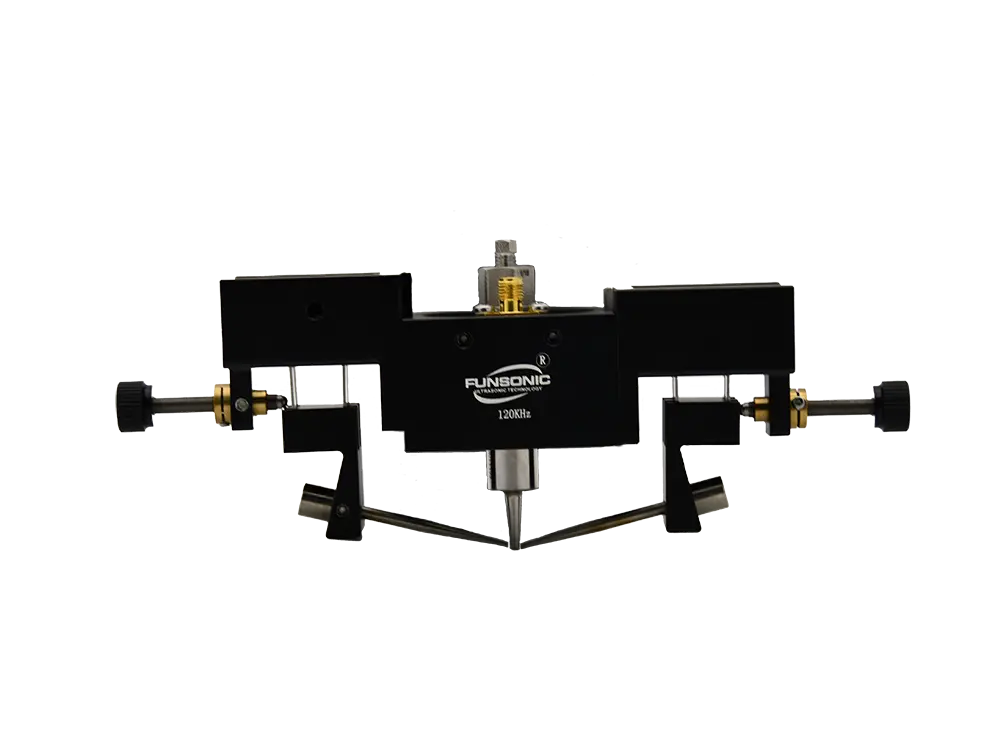

Ultrasonic Micro Spray Nozzle

◆ Atomized particle size range (μm)：10-60

◆ Spray width（mm）：0.5-5

◆ Spray flow（ml/min）：0.01-1

◆ Spray height（mm）：10-20

◆ Liquid viscosity（cps）：＜15

◆ Particle size（μm）：＜8

◆ Diversion pressure（Mpa）：＜0.02

60khz

100khz

120khz

Short Description

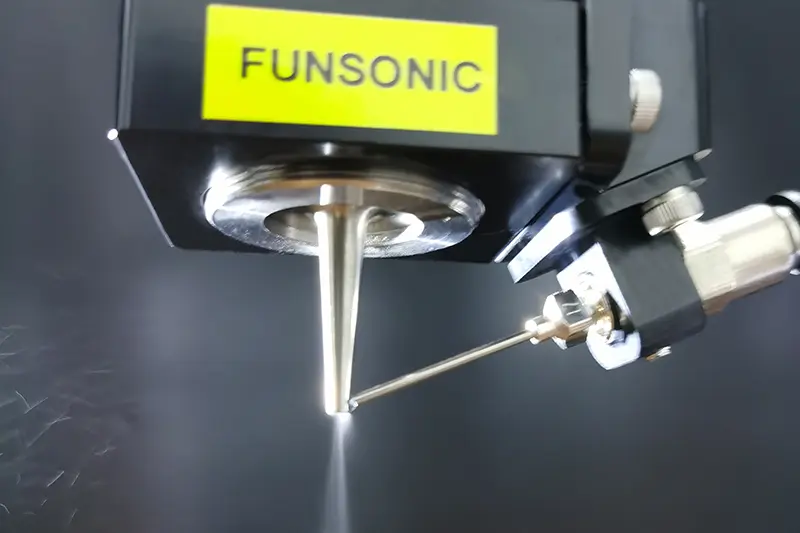

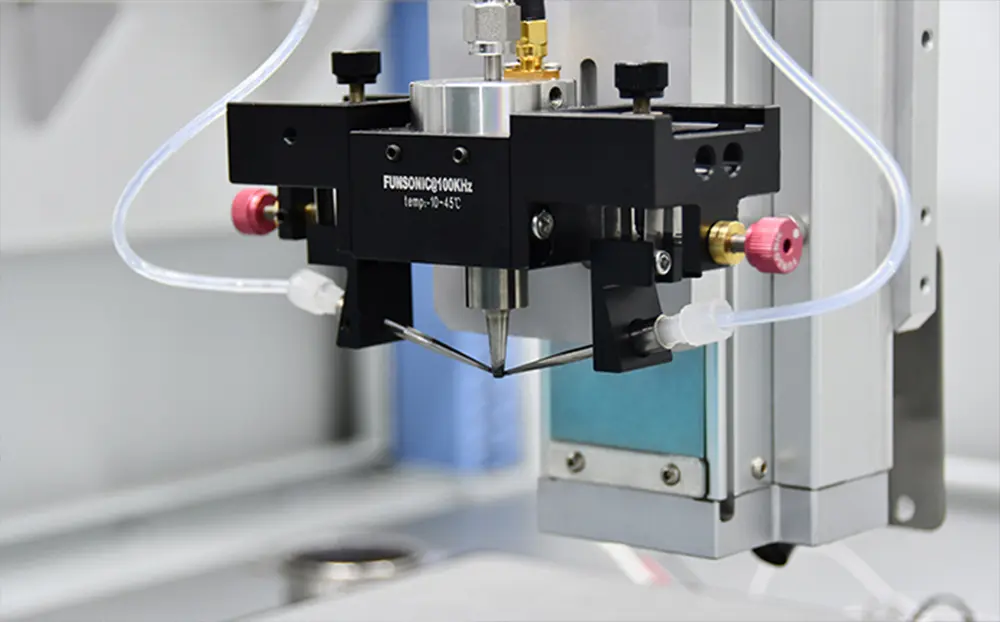

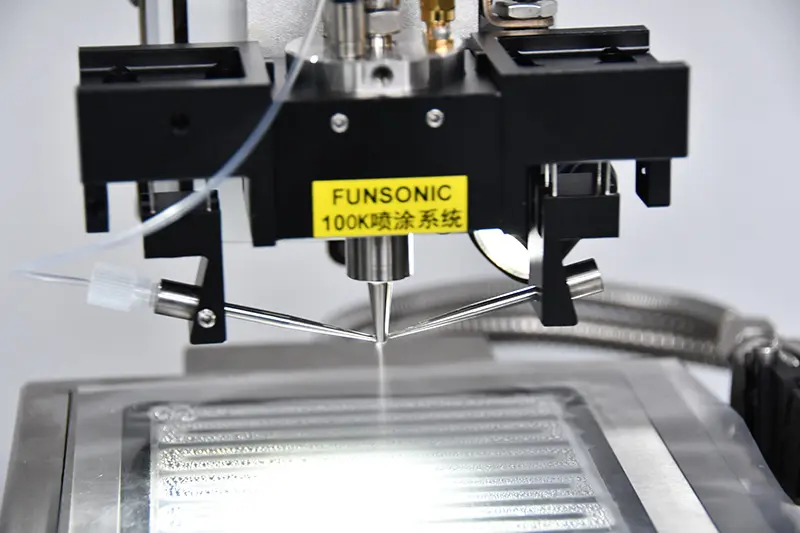

The line-spray focused ultrasonic atomizing nozzle is combined with low-pressure air/gas to produce a soft, highly focused beam of small droplets. An isolated hypotube delivers the liquid to the atomizing surface of the nozzle, while the air/gas delivered through the nozzle orifice at a fixed low pressure shapes the atomized droplets into a very precise target spray beam with a diameter of only 0.020 inches (0.5 mm).

Advantages

◆ Very small area spraying, very small flow rate: spraying width 1-2mm, minimum flow rate 0.005ml/min

◆ Uniform coating: uniformity>95

◆ Save raw materials: The utilization rate of raw materials is over 85%, which is four times that of traditional two fluid spraying

◆ High precision control of coating thickness: capable of preparing coatings ranging from 20nm to tens of microns, with precise control of coating thickness

◆ The atomized particles are uniform, and the spray flow is extremely low

◆ Can be sprayed intermittently or continuously

◆ Will not block the nozzle

◆ Anti corrosion nozzle

◆ High precision controllable spraying
