Ultrasonic Dispersion Injector Bucket

◆   Injector Bucket: 4L(or customized)
◆  Frequency: 20Khz
◆  Power: 1000w
◆  Generator: Digital Generator
◆  Operating temperature: 15℃-40℃
◆  Application: Electronic industry, medical equipment, energy and nanomaterials, glass films

    Short Description

    When a highly reliable and simple liquid transportation method is necessary and the flow rate or dispensing volume must be strictly controlled, ultrasonic dispersion pressure drums are a cost-effective liquid transportation solution.
    The sprayed liquid is placed in a closed storage container and pressurized by an external gas source (air or any other non combustible gas). The gas pressure provides the power mechanism, forcing the liquid to enter the pipeline supply nozzle from the reservoir.

    Principle

    Ultrasonic dispersion system will transform the liquid into a dispersed state, that is, fine or ultrafine ultrasonic grinding of solids or fluids due to the ultrasonic vibration effect. Grinding solid particles suspended in liquid or simply destroying metal or stone type solids and viscous substances immersed in liquid requires a way, as the destruction of strong substances requires shock waves generated by the rupture of cavitation bubbles. Due to the particularity of the ultrasonic field generated in liquid media, ultrasonic dispersion provides highly dispersed, uniform, and chemically pure suspensions (particle size less than 1 μ m).

    Advantages

    Compared with some traditional dispersion methods, ultrasonic dispersion is an effective dispersion method with lower cost and easy operation and maintenance
    Ultrasonic dispersion injector can achieve ultrasonic dispersion treatment of the solution before atomization spraying, avoiding solid precipitation during the spraying process

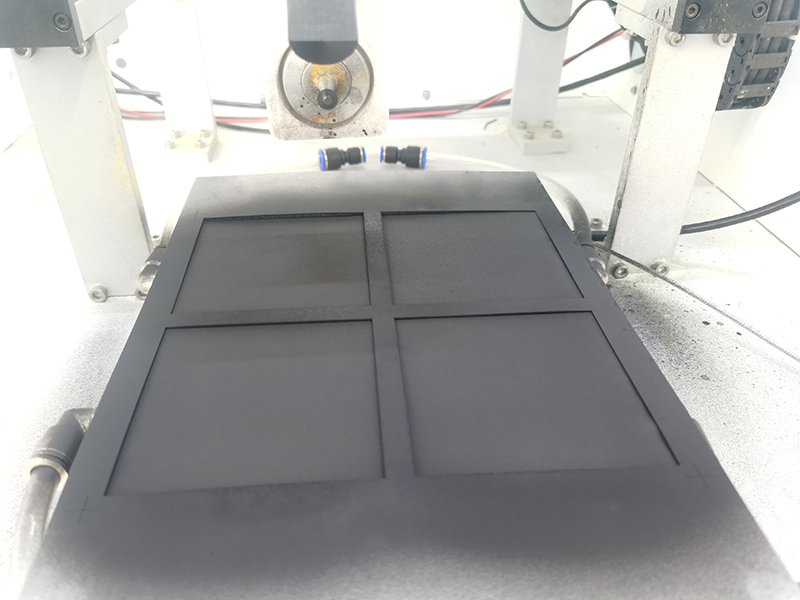

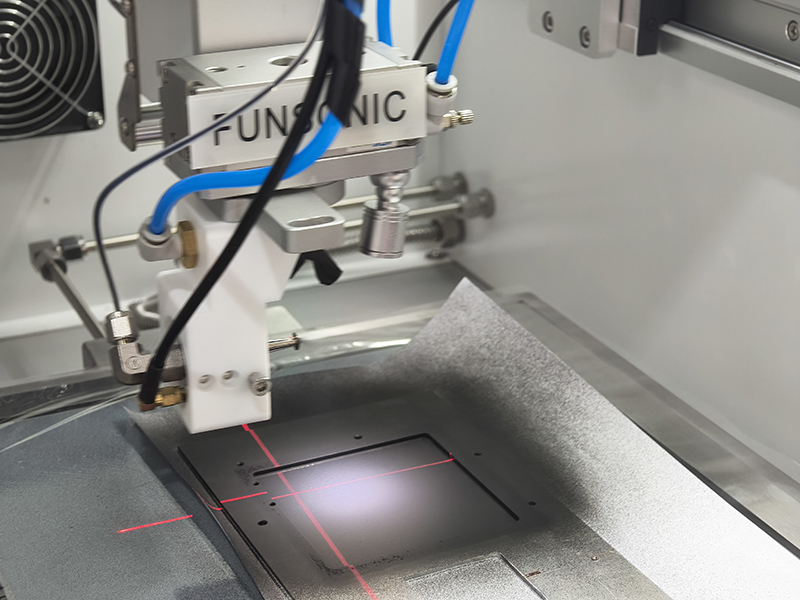

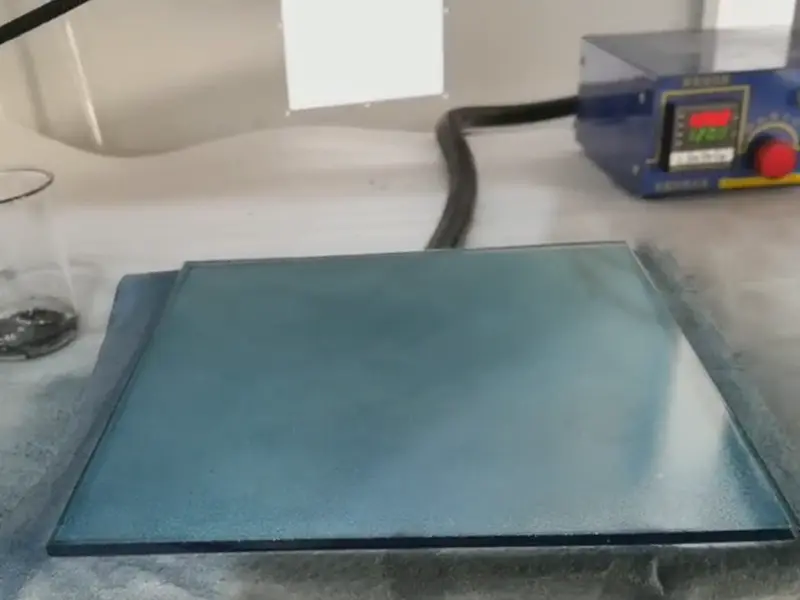

    Ultrasonic Dispersion Injector Bucket1
    Ultrasonic Dispersion Injector Bucket2
    Ultrasonic Dispersion Injector Bucket3
    Ultrasonic Dispersion Injector Bucket4
    01020304

    Demonstration

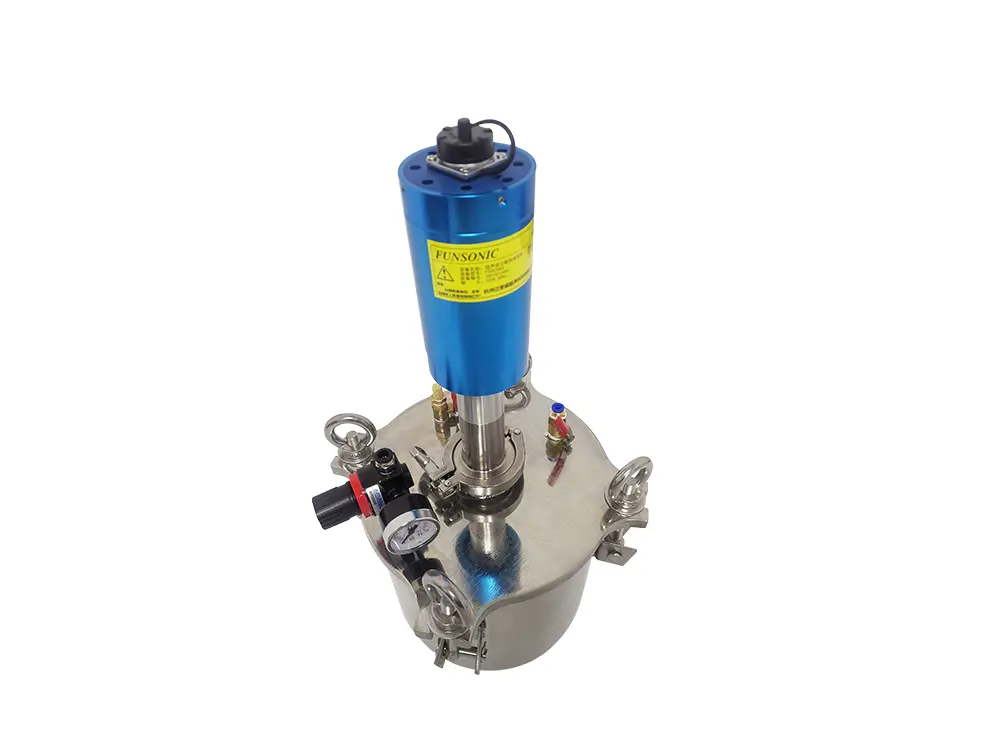

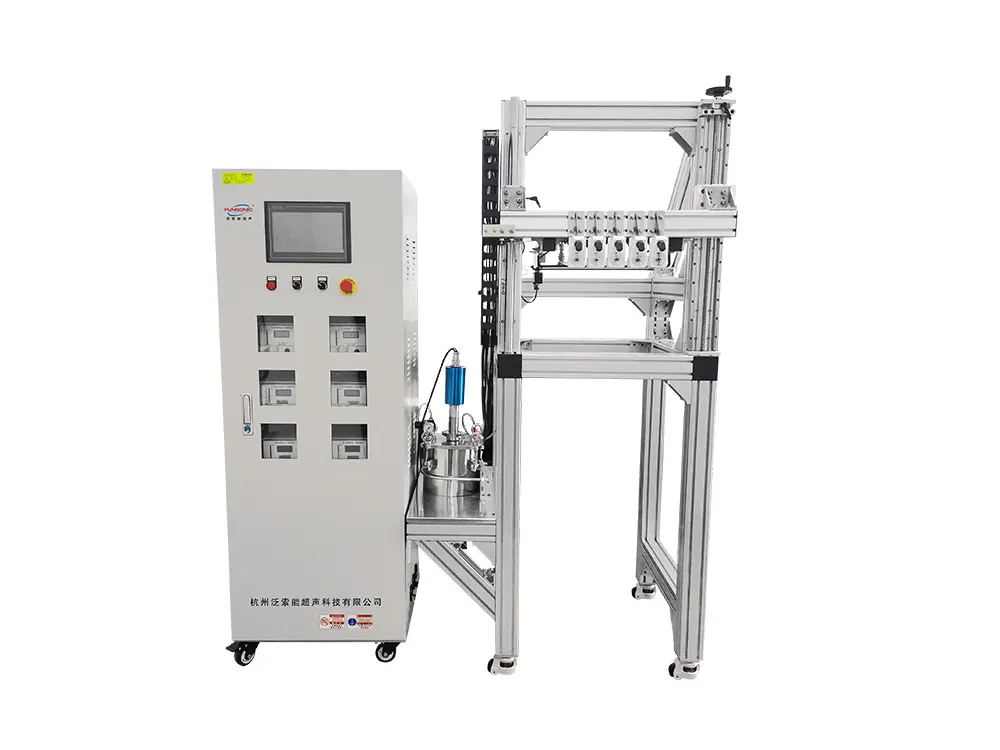

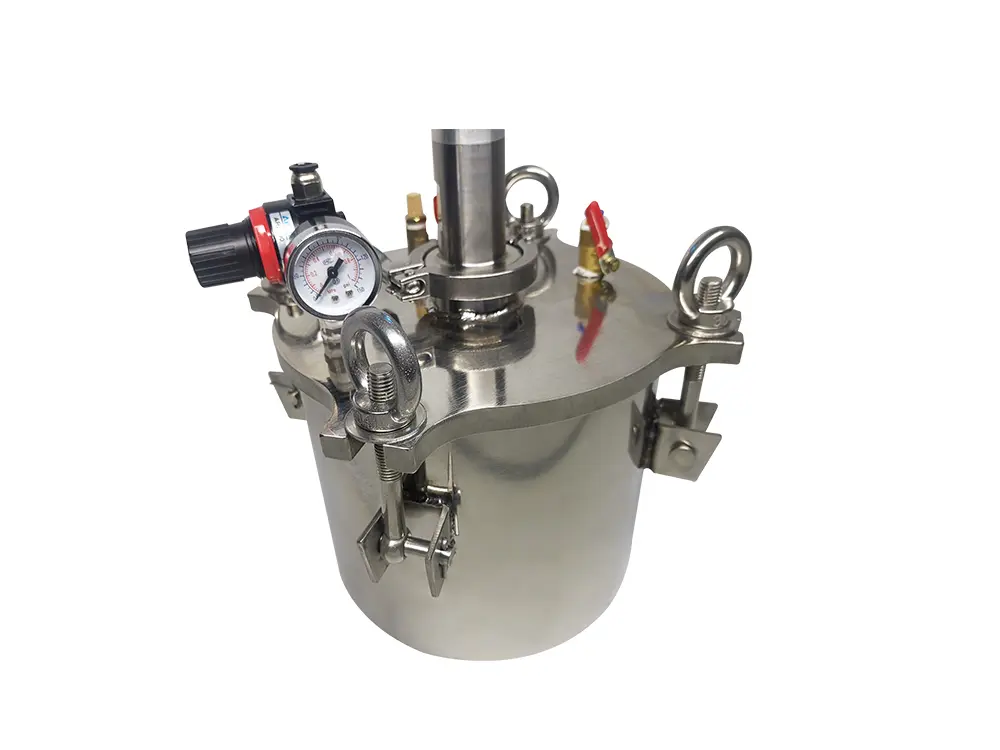

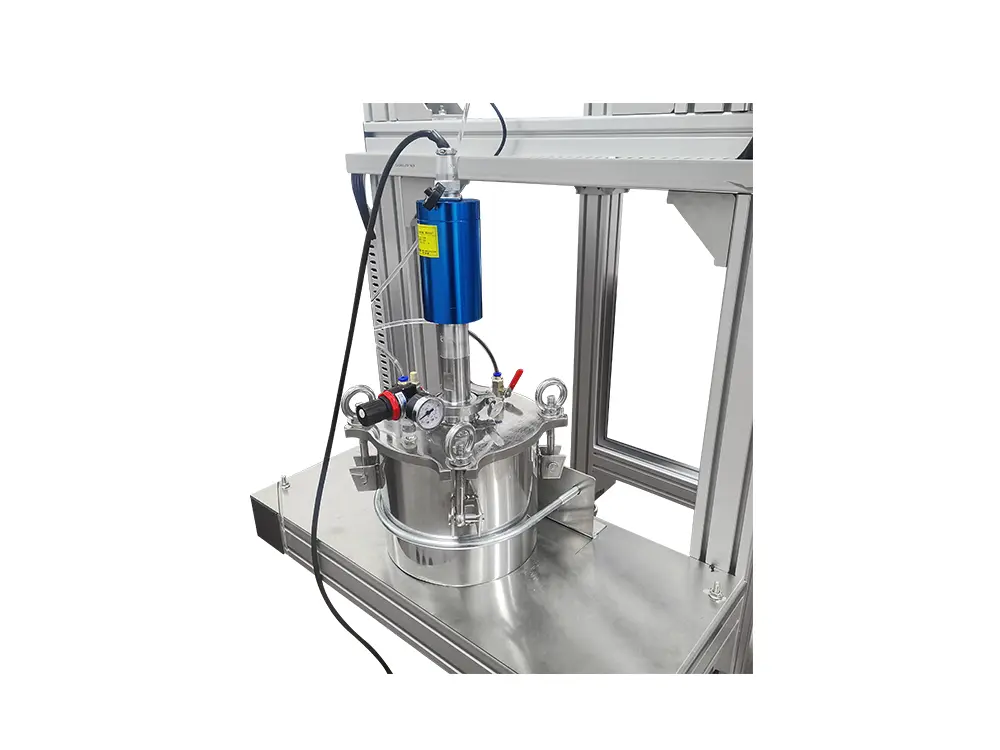

    Ultrasonic Dispersion Injector Bucket
    Ultrasonic Dispersion Injector Bucket -1
    Ultrasonic Dispersion Injector Bucket -2
    Ultrasonic Dispersion Injector Bucket -3
