Intelligent Injection Pump with Ultrasonic Dispersion FSLAB01

◆ Applicable syringe types: 0.5μm-150ml (ultrasonic dispersion of 25, 50, 100ml)

◆ Linear speed range: 1μm/min-132mm/min

◆ Linear thrust range: 8-20 kgf, adjustable online

◆ Travel control accuracy:Error ≤ ± 0.3%

◆ Fallback distance: 0.01-10mm

◆ State output:OC gate signal output

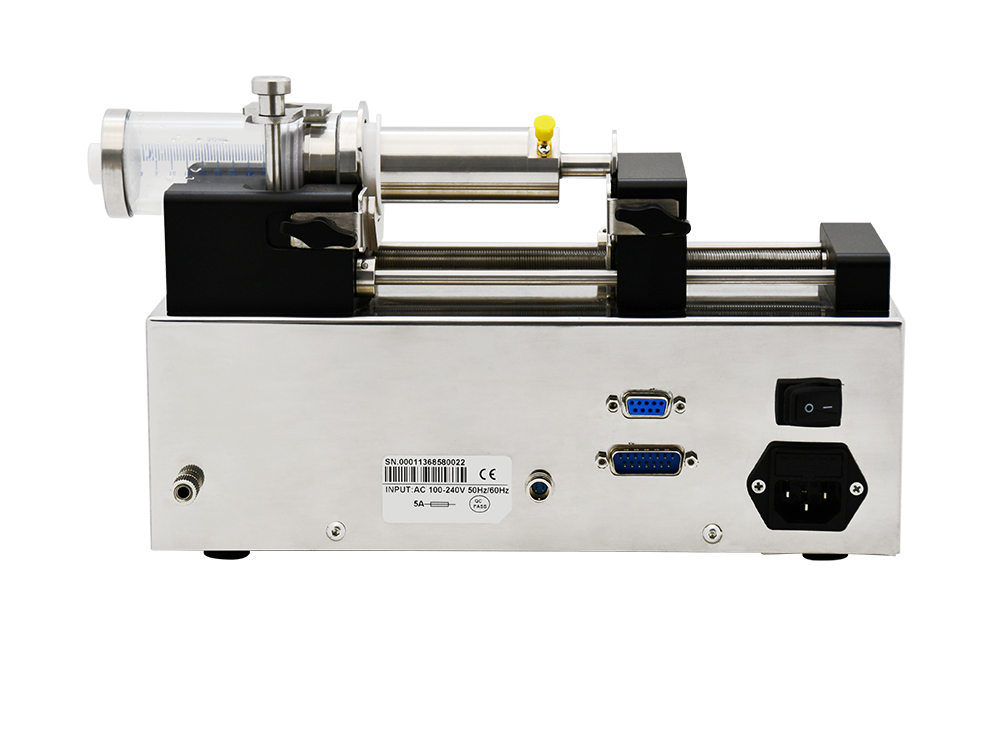

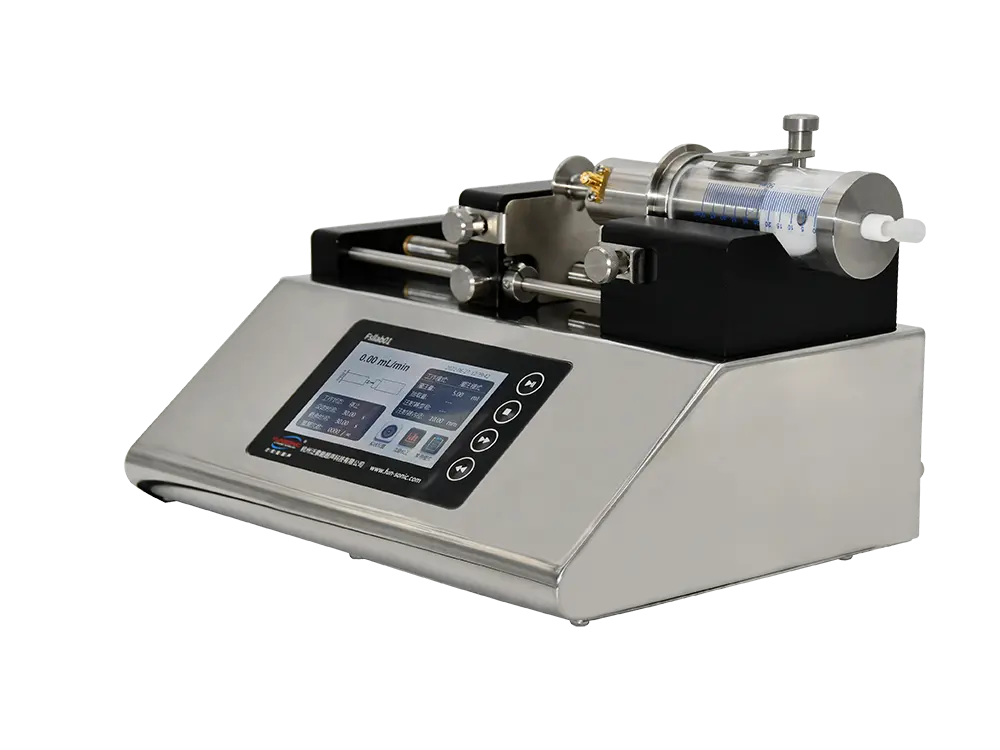

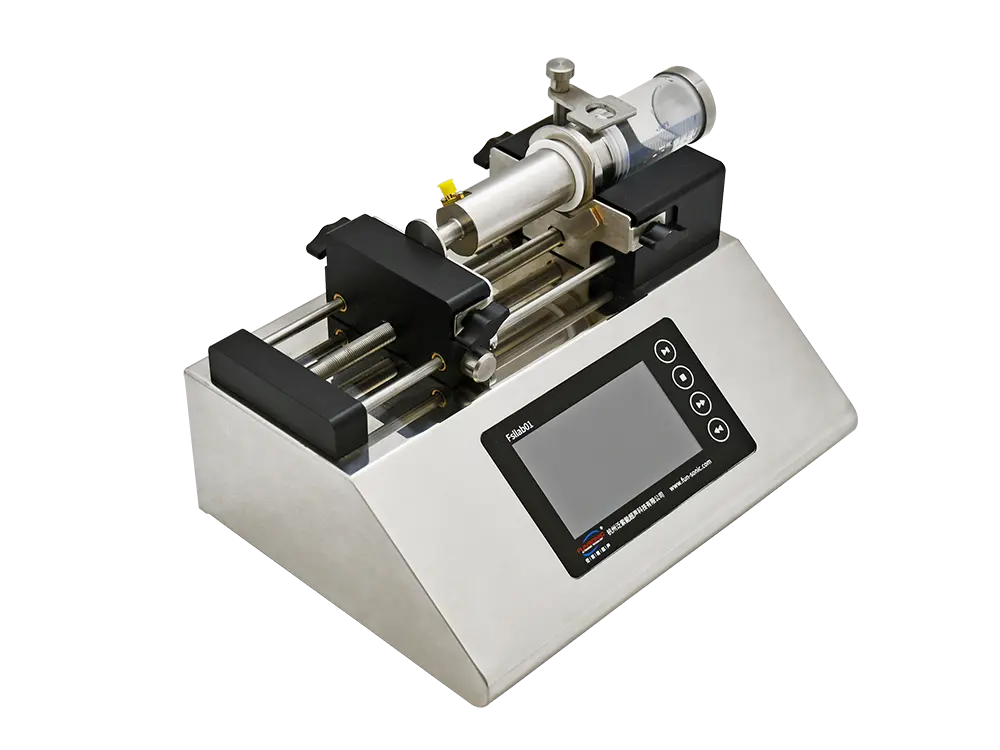

    Single channel (13)Single channel (1)Single channel (2)

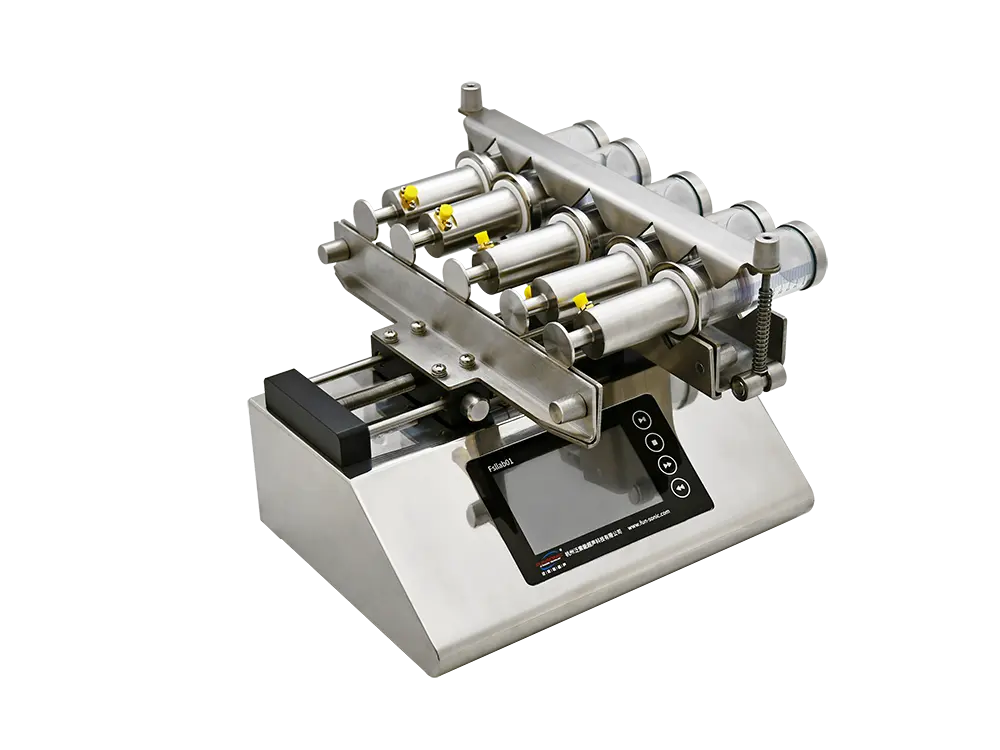

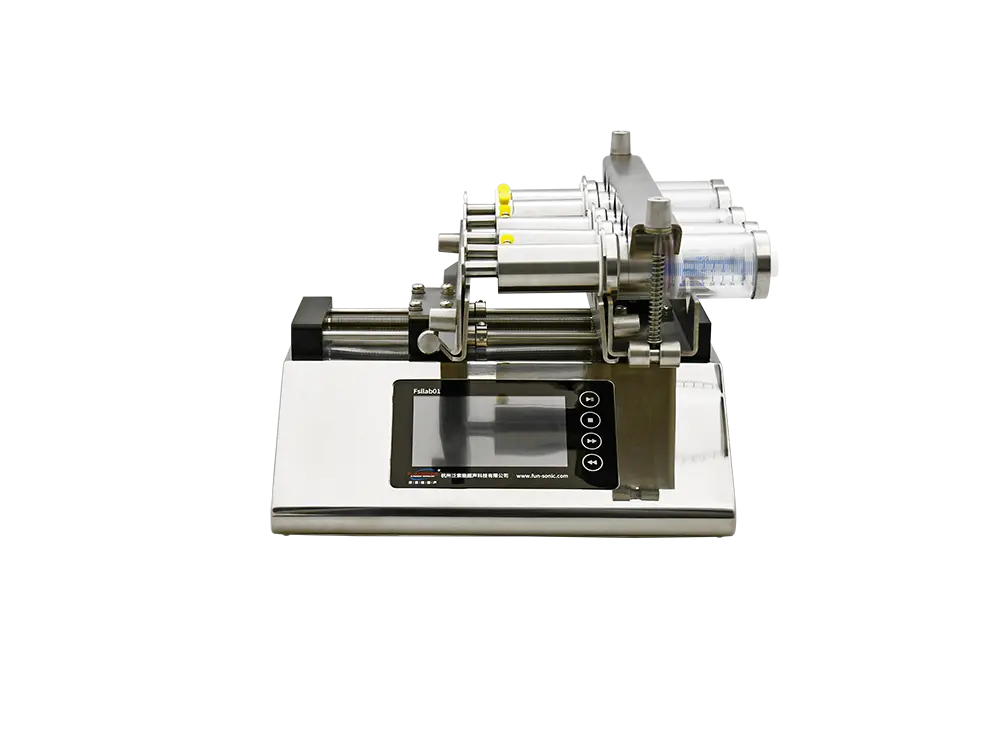

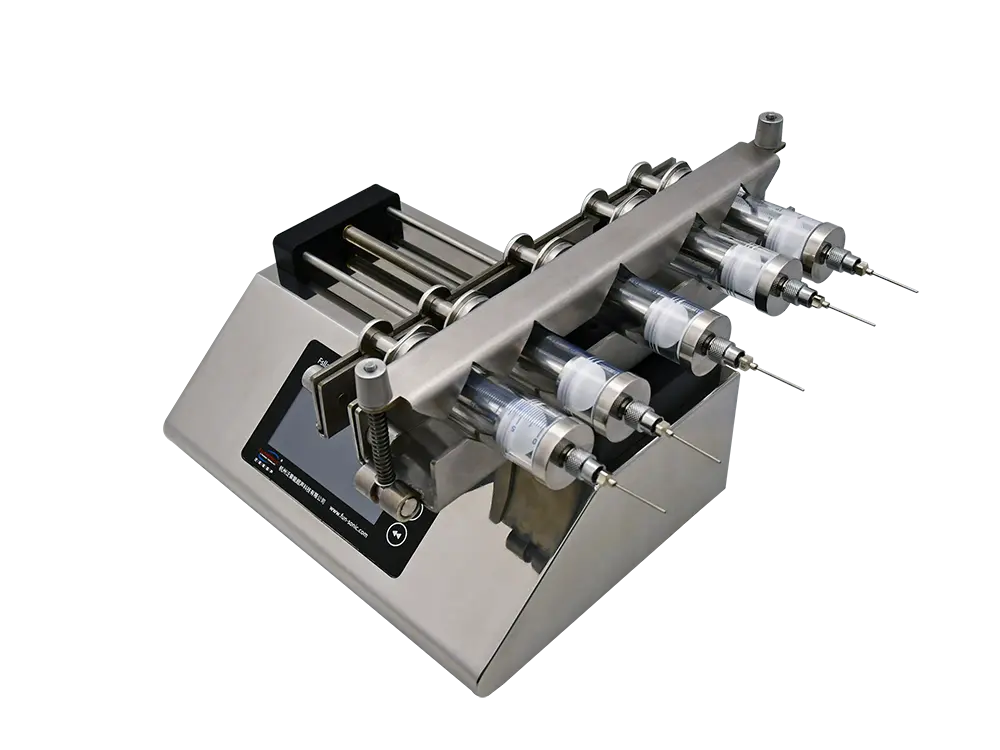

    5 channels (1)5 channels (2)5 channels (3)

    Short Description

    FSLAB01 Lab series syringe pump is push-pull type with stainless steel mirror housing, 4.3 inch color LCD touch screen and imported mechanical keys control, graphical interface, animation shows the working status. The filling parameters and running status are displayed in same screen. Support RS232 and RS485 communication and it is convenient for users to remote control under different conditions with rich external control interface.

    Ultrasonic Dispersion Injector FSLAB01 (2)

    Principle

    Ultrasonic dispersion system will transform the liquid into a dispersed state, that is, fine or ultrafine ultrasonic grinding of solids or fluids due to the ultrasonic vibration effect. Grinding solid particles suspended in liquid or simply destroying metal or stone type solids and viscous substances immersed in liquid requires a way, as the destruction of strong substances requires shock waves generated by the rupture of cavitation bubbles. Due to the particularity of the ultrasonic field generated in liquid media, ultrasonic dispersion provides highly dispersed, uniform, and chemically pure suspensions (particle size less than 1 μ m).

    Main Features

    1. 4.3-inch industrial grade LCD screen display, touch screen control, simply operation interface

    2. Online modification of liquid flow function

    3. Input function for syringe inner diameter

    4. Two measurement methods for optional

    5. It has 4 working modes and traffic jam protection functions, etc

    Ultrasonic Spray Coating System  (1)
    Ultrasonic Spray Coating System  (2)
    Ultrasonic Spray Coating System  (3)
    Ultrasonic Spray Coating System  (4)
    Ultrasonic Spray Coating System  (5)
    0102030405

    Demonstration

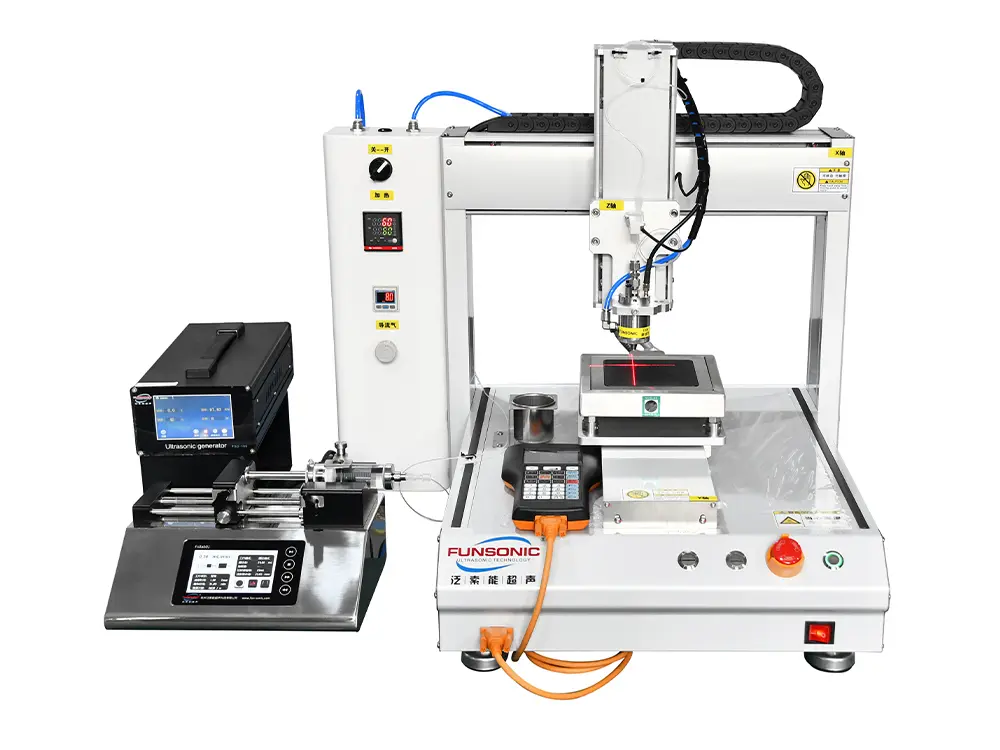

    Ultrasonic Dispersion Injector FSLAB01 (3)

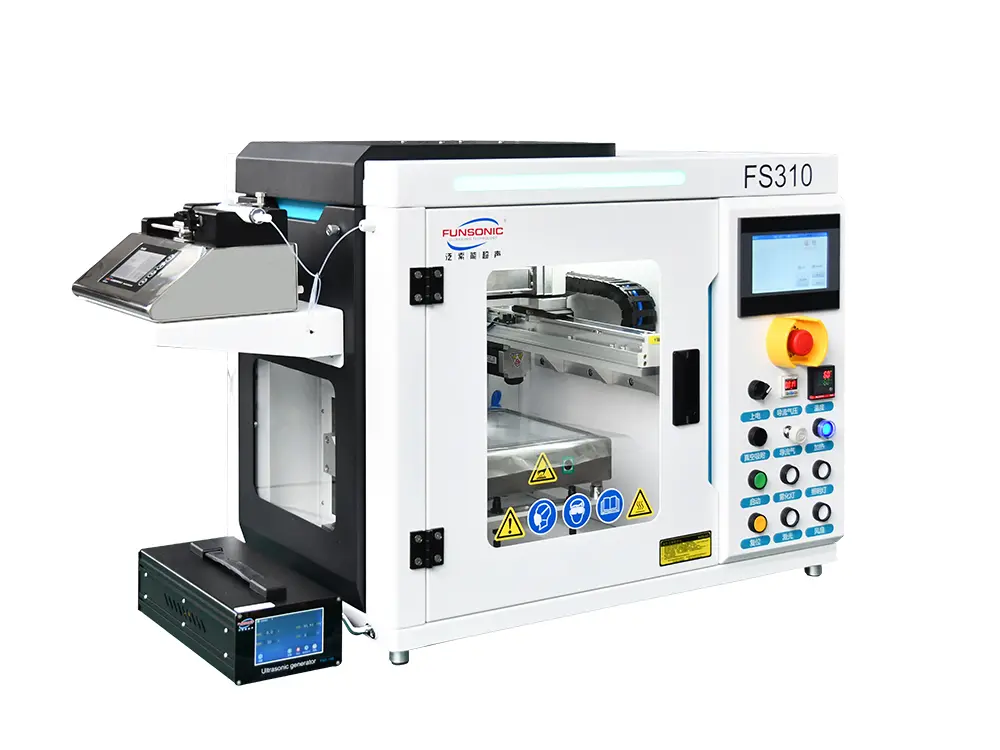

    Ultrasonic Dispersion Injector FSLAB01 (4)

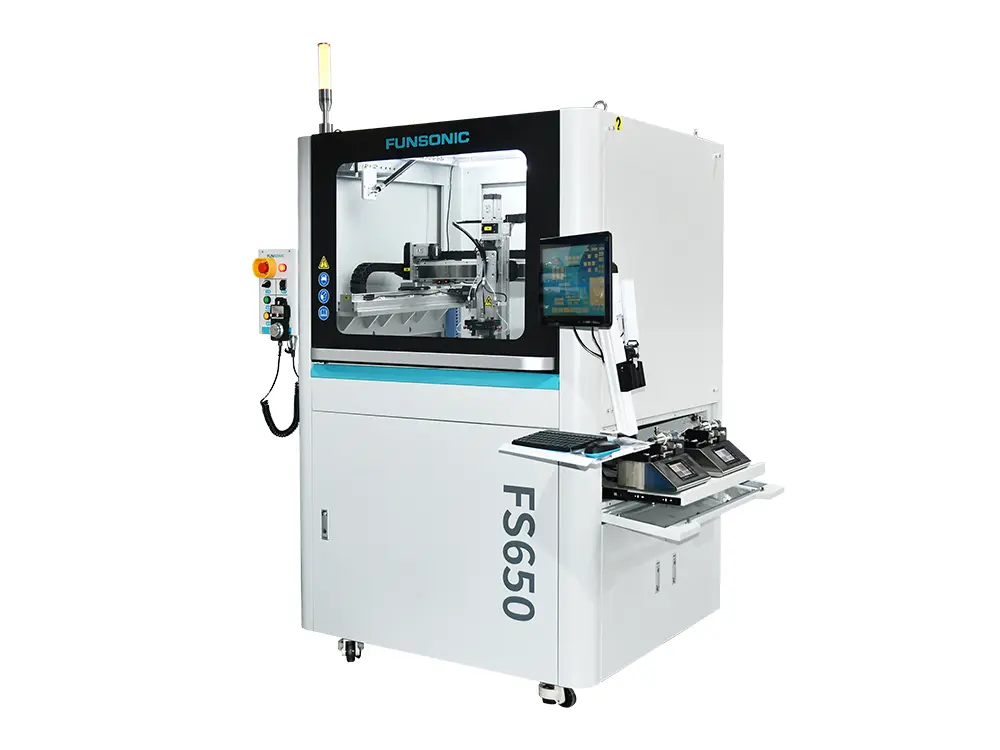

    Ultrasonic Dispersion Injector FSLAB01 (5)
    Ultrasonic Dispersion Injector FSLAB01 (6)
    0102
