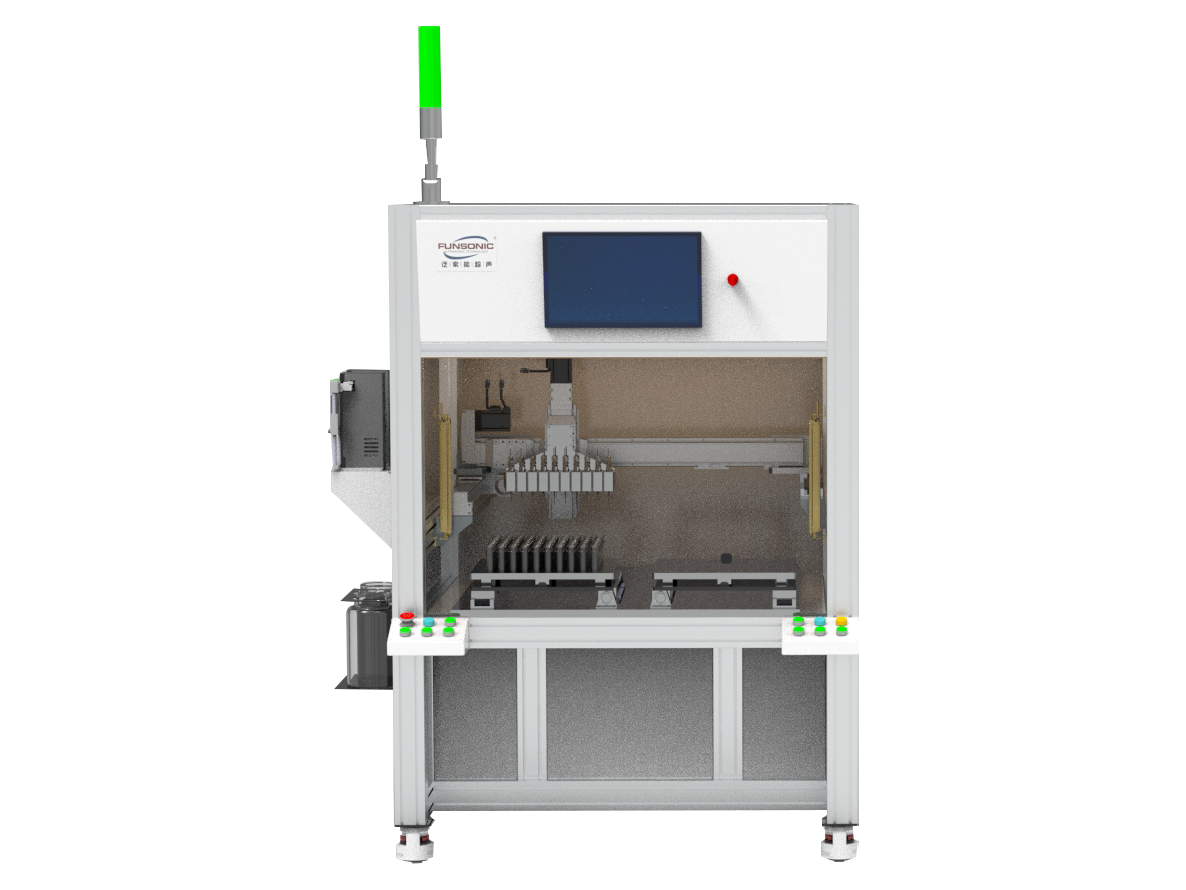

Floor Standing Ultrasonic Blood Collection Tube Coating System FS800.png

Floor Standing Ultrasonic Blood Collection Tube Coating System FS800

Ultrasonic coating system is designed for blood collection tubes or syringes. The whole system is fully functional and equipped with the mold base required for syringes or blood collection tubes.

    Contact us
    Contact Us

    Short Description

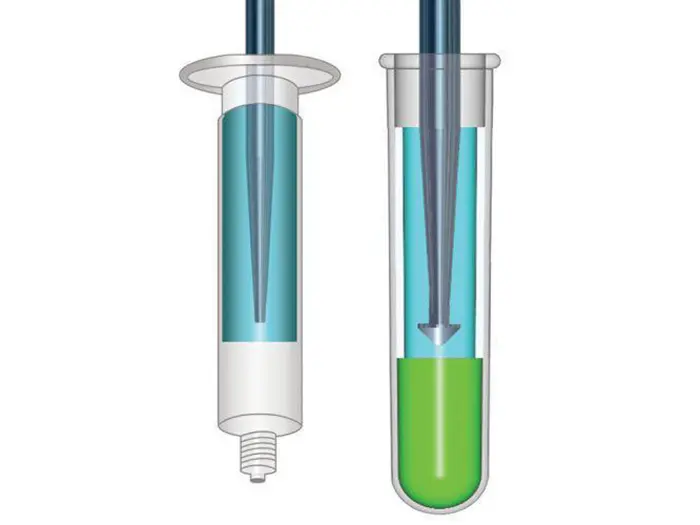

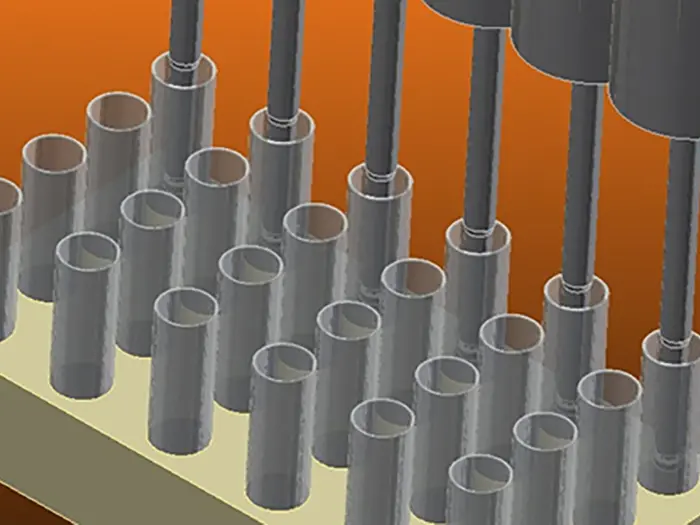

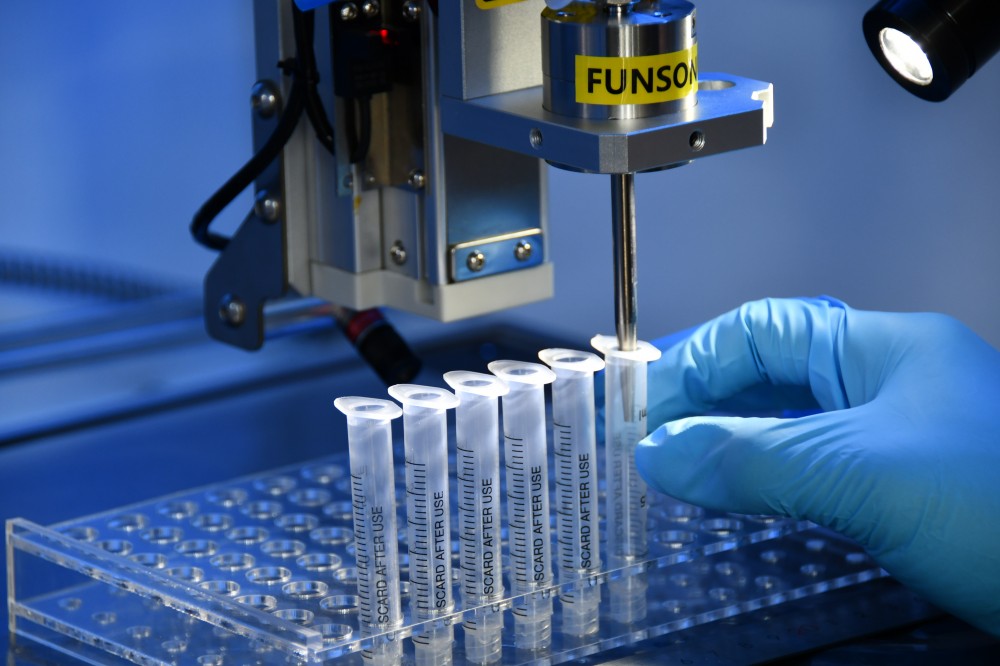

    Ultrasonic coating system is designed for blood collection tubes or syringes. The whole system is fully functional and equipped with the mold base required for syringes or blood collection tubes. It can evenly apply coagulation activators and anticoagulants, including heparin, EDTA, silica and acid citrate glucose. It can process up to tens of thousands of tubes per hour. And it can also spray the atomized spray onto the wall of the required bottom coating area as needed, instead of coating the entire tube.

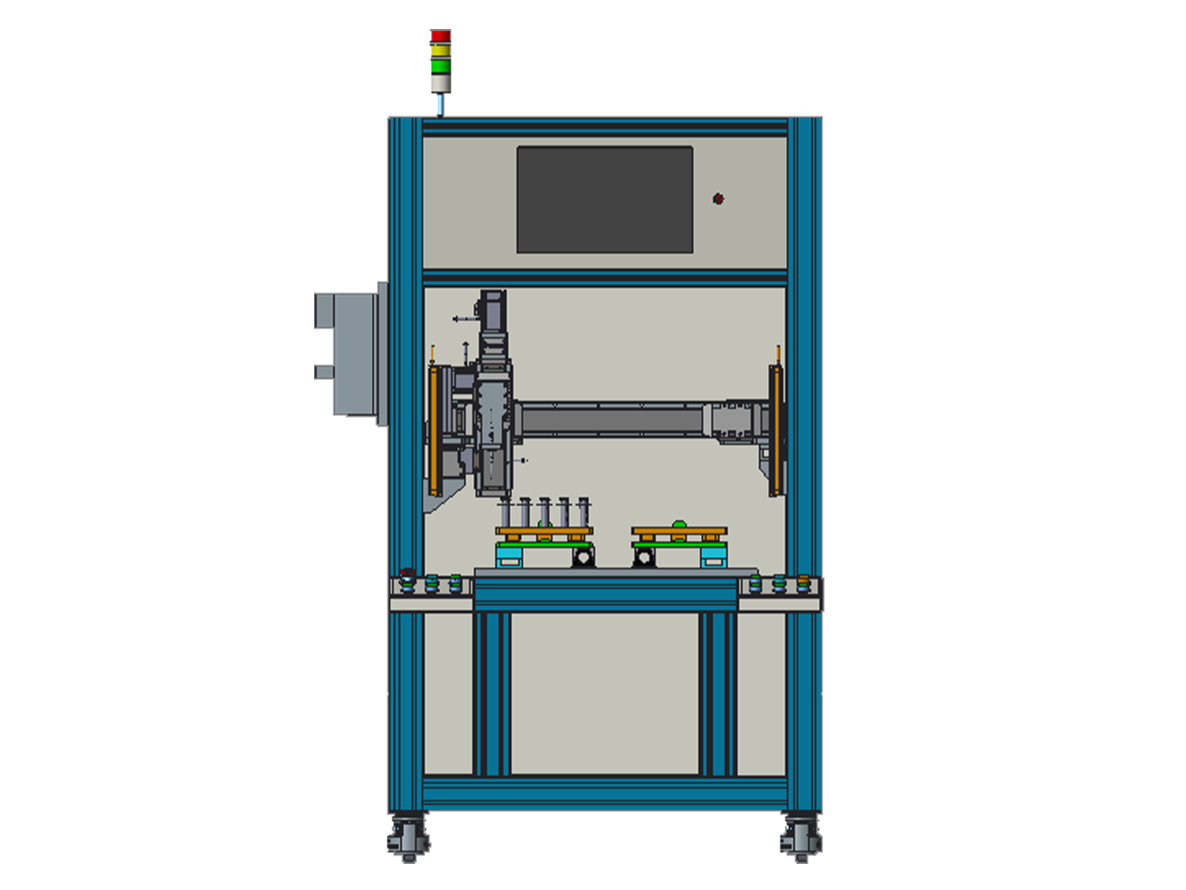

    Floor Standing Ultrasonic Blood Collection Tube Coating System FS800 (2)

    Parameters

    ● Frequency of Spray Nozzle: 20-200Khz for option

    ● Nozzle Type: Penetrator, (or Customized)

    ● Continuous Spray Volume : 0.01-50ml/min

    ● Dry Film Thickness: 20nm-100μm

    ● Spray Uniformity: ≥95%

    ● Solution Conversion Rate: ≥95%

    ● Continuous Working: Can process tens of thousands of tubes per hour

    ● Apply coagulation activators and anticoagulants evenly.

    ● Size: 1000*1100*1700mm

    Advantage

    • High Material Utilization Rate

      Ultrasonic atomization spraying can achieve several times the utilization rate of traditional spraying, effectively reducing material costs

    • Nano Scale Film Thickness

      The thinnest film thickness that can be prepared by ultrasonic atomization spraying can reach tens of nanometers, with highly consistent uniformity

    • Non Pressure Atomization

      Atomization is generated through high-frequency ultrasonic vibration, without the involvement of air pressure, effectively avoiding the impact of high air pressure on the substrate

    Product Configuration

    • Conventional Arrangement

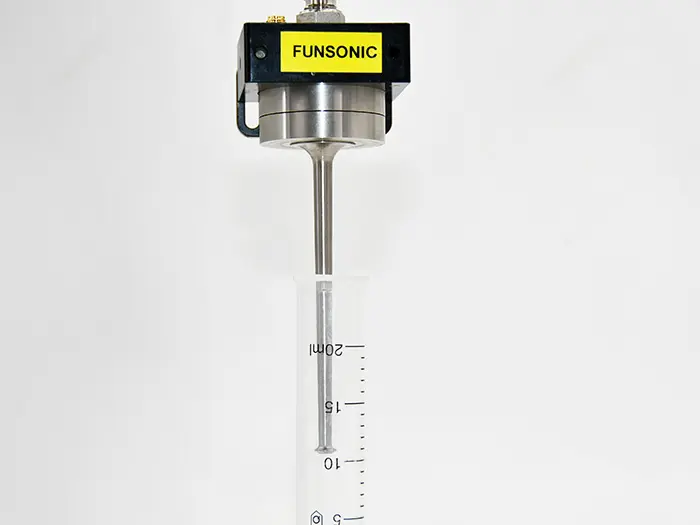

      1. Ultrasonic nozzle: optional 20-200Khz multiple nozzle systems

      2. Ultrasonic power supply: fully CNC precision power supply, fully intelligent frequency following, frequency tracking, stable performance

      3. Liquid supply equipment: precision injection pump+biological grade sampler, liquid supply accuracy of 0.1 μ L/min

      4. Sports system: XYZ three-axis imported servo motor+fully enclosed precision screw module

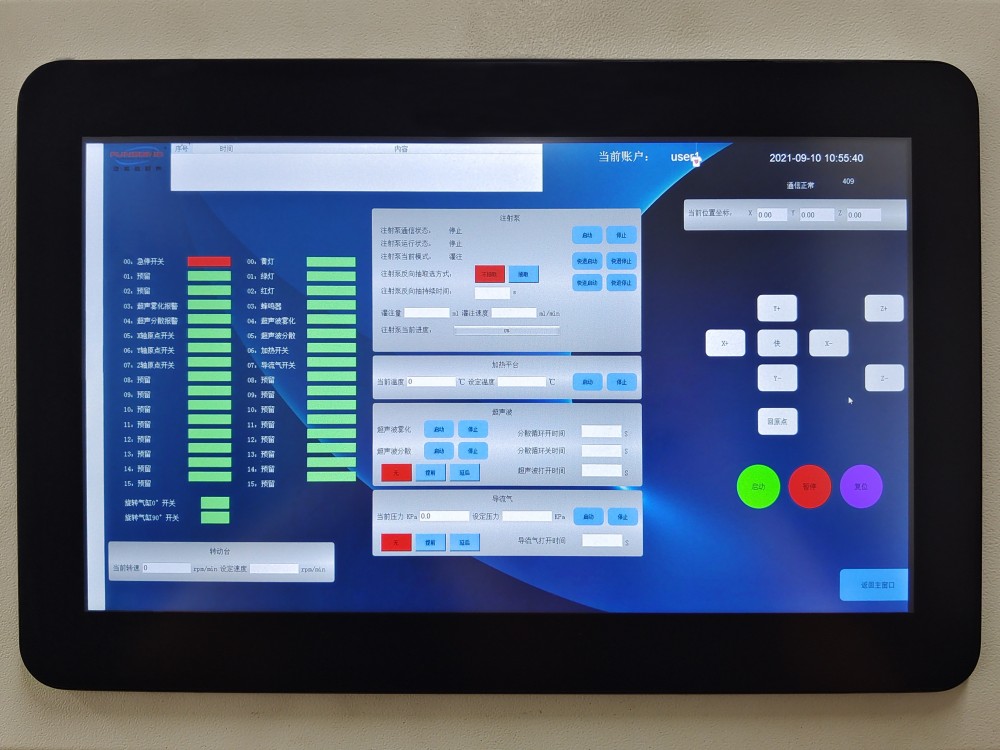

      5. Operating System: Based on the Windows system, FUNSONIC independently developed a spraying control system, PLC control, and full-color touch screen

    • Optional Configuration

      1. Ultrasonic dispersion liquid supply system: During the spraying process, it can continuously disperse and stir nanoparticles, effectively reducing the precipitation phenomenon of the spraying liquid and greatly improving the uniformity of the film layer

      2. Tooling can be customized according to actual applications

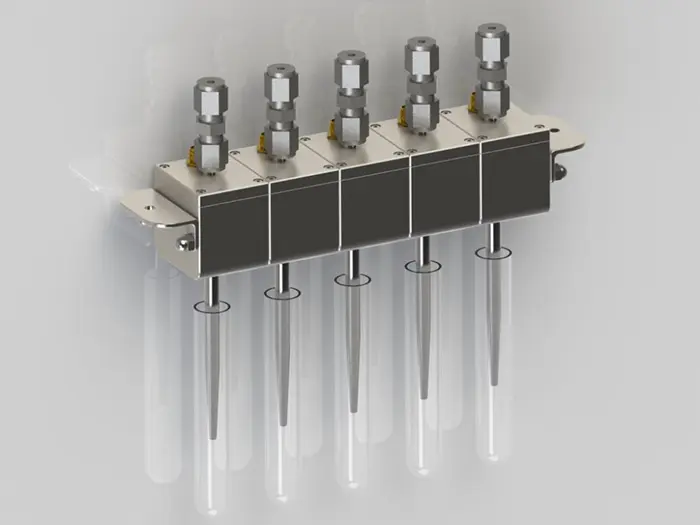

      3. Multiple nozzles can be used side by side

      4. The length of the nozzle can be customized

      We can also customize other configurations according to your needs.

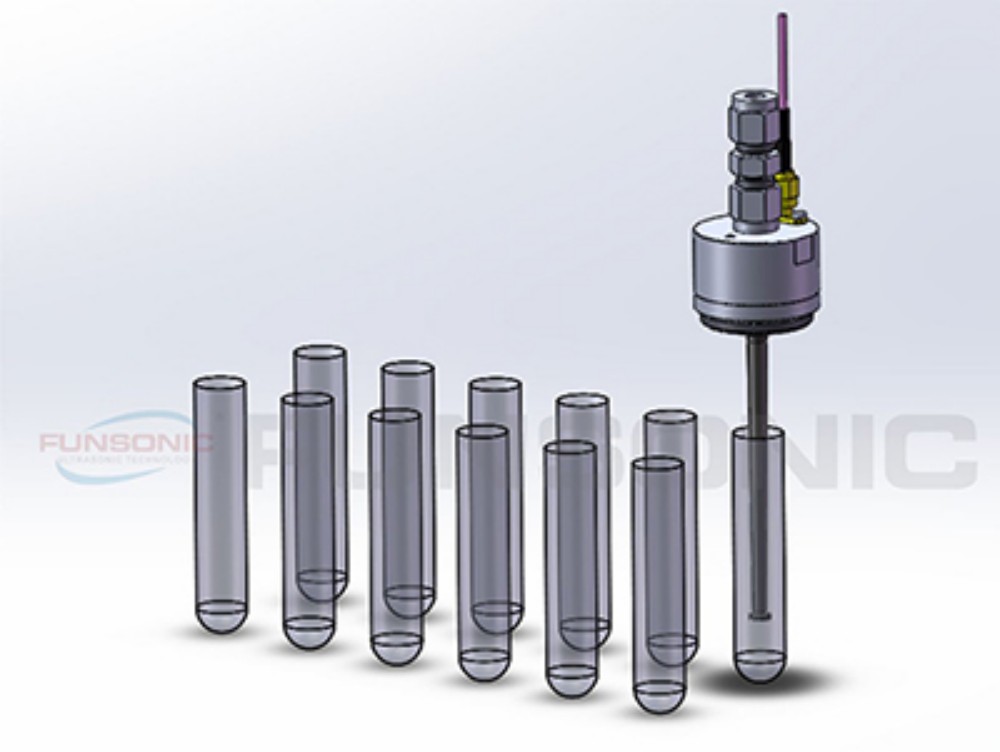

    Floor Standing Ultrasonic Blood Collection Tube Coating System FS800 (1)
    Floor Standing Ultrasonic Blood Collection Tube Coating System FS800 (2)
    Floor Standing Ultrasonic Blood Collection Tube Coating System FS800 (3)
    Floor Standing Ultrasonic Blood Collection Tube Coating System FS800 (5)

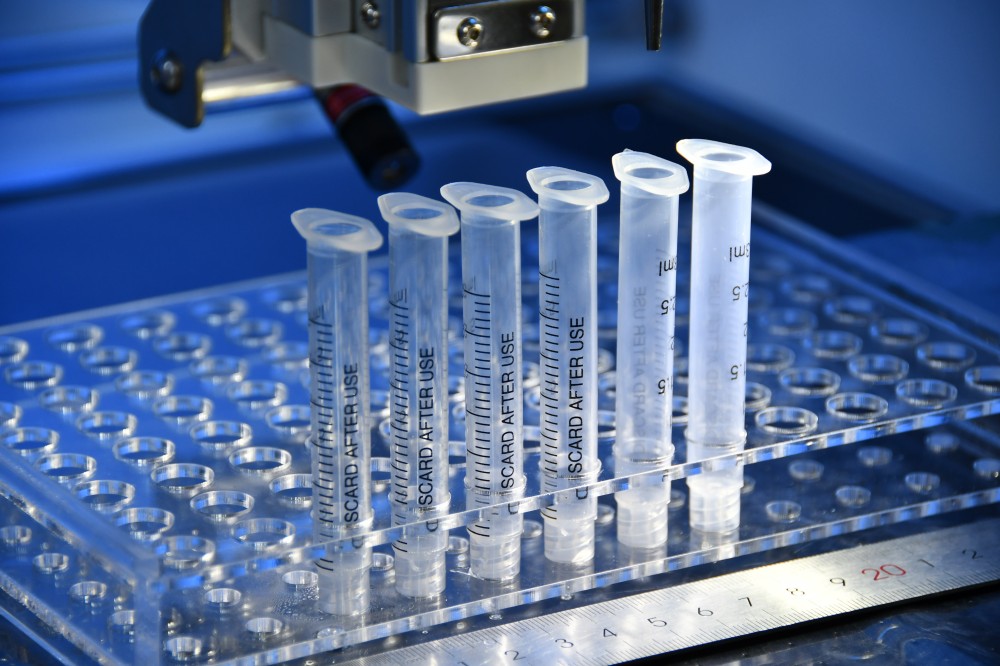

    Floor Standing Ultrasonic Blood Collection Tube Coating System FS800 (4)

    Product Application

    1. Medical devices: Surface treatment of vascular stents, catheters, and other implants to improve the compatibility and antithrombotic properties of biomaterials; Coatings for dental and surgical instruments.

    2. Electronic products: Used as protective coatings for circuit boards, wires, and connectors to improve insulation and moisture resistance.

    3. Automotive industry: Coating engine components, fuel systems, and other critical components to improve corrosion resistance and wear resistance.

    4. Aerospace: Apply protective coatings on lightweight and high-performance materials.

    5. Home appliance manufacturing: Used for coating the surface of home appliances to enhance aesthetics and durability.

    5. Home appliance manufacturing: Used for coating the surface of home appliances to enhance aesthetics and durability.

    7. Coatings and paints industry: used for spraying high-performance coatings to improve coating quality.
