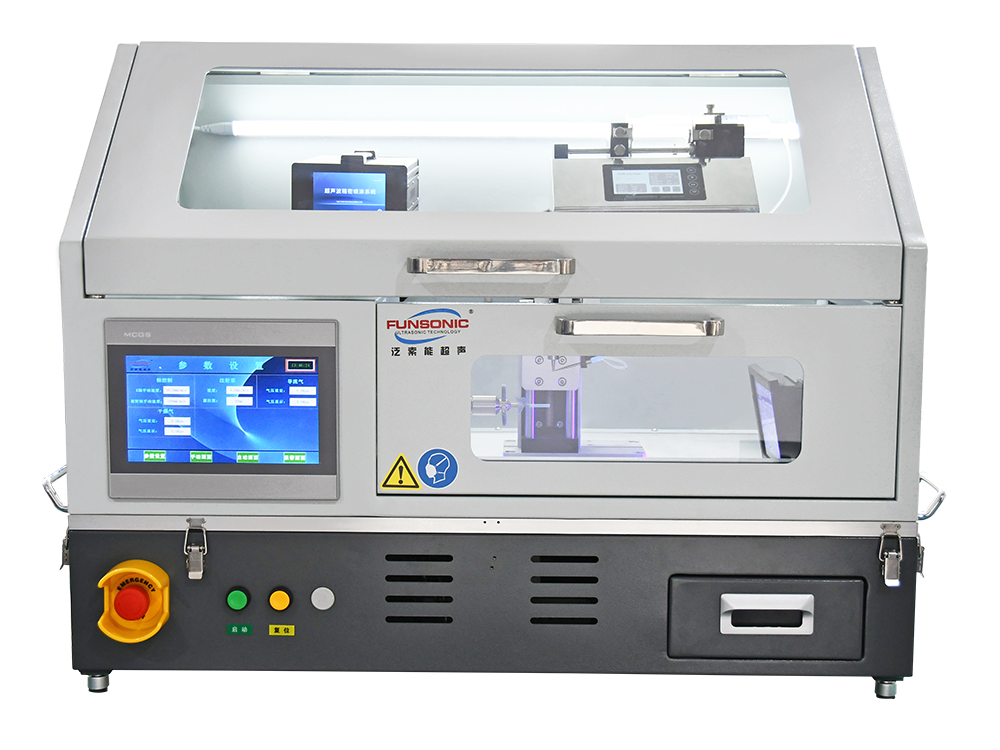

Benchtop Ultrasonic Stent Coating System FS1006.png

Benchtop Ultrasonic Stent Coating System FS1006

This is an ultrasonic coating system specially designed for drug-eluting stents, providing uniform drug coating for stent through ultrasonic spraying technology without adhesion, pinholes, air bubbles and other defects.

    Contact us
    Contact Us

    Short Description

    High Frequency Stent Implantation Drug Coated Ultrasonic Spraying Coated System is a method of using ultrasonic technology for drug and stent spraying, mainly used in the field of vascular intervention therapy. This technology combines the advantages of drug eluting stents and ultrasonic spraying technology, aiming to provide long-lasting drug release and improve the therapeutic effect of vascular diseases.
    High Frequency Stent Implantation Drug Coated Ultrasonic Spraying Coated System is a type of vascular stent with drug coating. It releases drugs to the surrounding blood vessel walls while implanting blood vessels to inhibit the occurrence of vascular restenosis and proliferation. Ultrasonic spraying technology, on the other hand, utilizes ultrasonic vibration to spray a drug coating onto the surface of the stent, providing uniform and long-lasting drug coverage.

    Benchtop Ultrasonic Stent Coating System FS1006

    Parameters

    ● Frequency of Spray Nozzle: 20-200Khz for option

    ● Nozzle Type: Focusmist, Micromist, etc (or Customized)

    ● Continuous Spray Volume : 0.01-50ml/min

    ● Dry Film Thickness: 20nm-100μm

    ● Spray Uniformity: ≥95%

    ● Solution Conversion Rate: ≥95%

    ● Specialized ultrasonic coating system for drug-eluting stents

    ● High corrosion resistance, compatible with various organic solvents

    ● Size: 1100*700*800mm

    Advantage

    • High Material Utilization Rate

      Ultrasonic atomization spraying can achieve several times the utilization rate of traditional spraying, effectively reducing material costs

    • Nano Scale Film Thickness

      The thinnest film thickness that can be prepared by ultrasonic atomization spraying can reach tens of nanometers, with highly consistent uniformity

    • Non Pressure Atomization

      Atomization is generated through high-frequency ultrasonic vibration, without the involvement of air pressure, effectively avoiding the impact of high air pressure on the substrate

    Product Configuration

    • Conventional Arrangement

      1. Ultrasonic nozzle: optional 20-200Khz multiple nozzle systems

      2. Ultrasonic power supply: fully CNC precision power supply, fully intelligent frequency following, frequency tracking, stable performance

      3. Liquid supply equipment: precision injection pump+biological grade sampler, liquid supply accuracy of 0.1 μ L/min

      4. Sports system: XYZ three-axis imported servo motor+fully enclosed precision screw module

      5. Operating System: Based on the Windows system, FUNSONIC independently developed a spraying control system, PLC control, and full-color touch screen

    • Optional Configuration

      1. High uniformity drug coating, with no adhesion, pinholes, orange peel or other defects in the drug coating;

      2. Support various specifications of balloon coating;

      3. Suitable for balloon maximum length: 300mm;

      4. Suitable specifications for peripheral brackets: typically no longer than 280mm in length and no larger than 60mm in diameter;

      5. The conversion efficiency of drug coatings is 4-5 times higher than that of air pressure spraying;

      6. Unique bracket fixture design: can quickly install and remove brackets;

      7. XYZ three-axis stepper motor nozzle motion system, dual stepper motor rotation system;

      8. It can be used to spray various medical devices, such as stents, catheters, and guide wires; (Single fixture and tooling)

      We can also customize other configurations according to your needs.

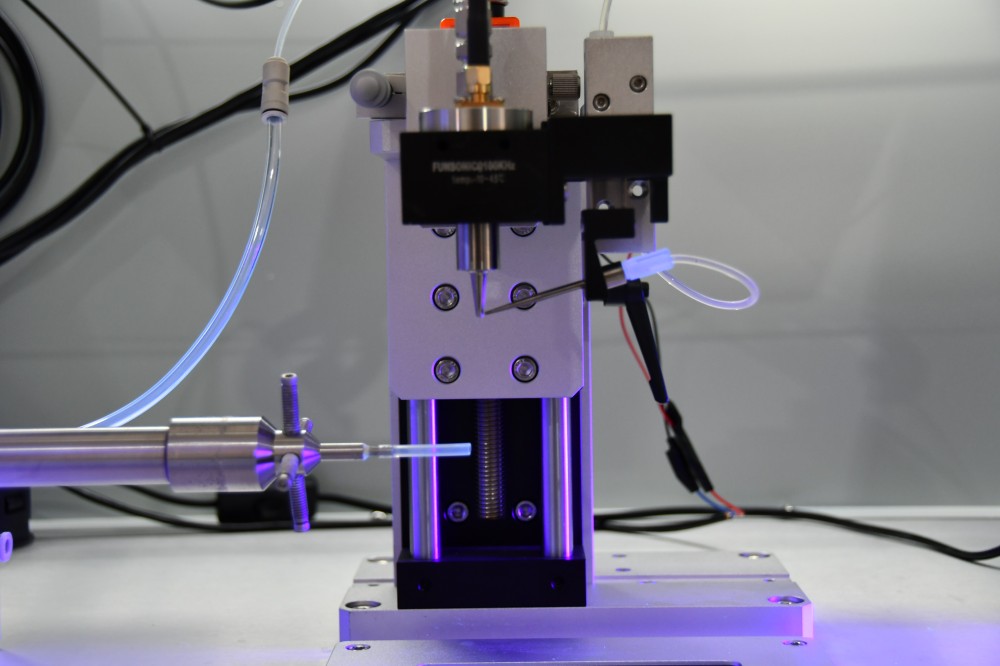

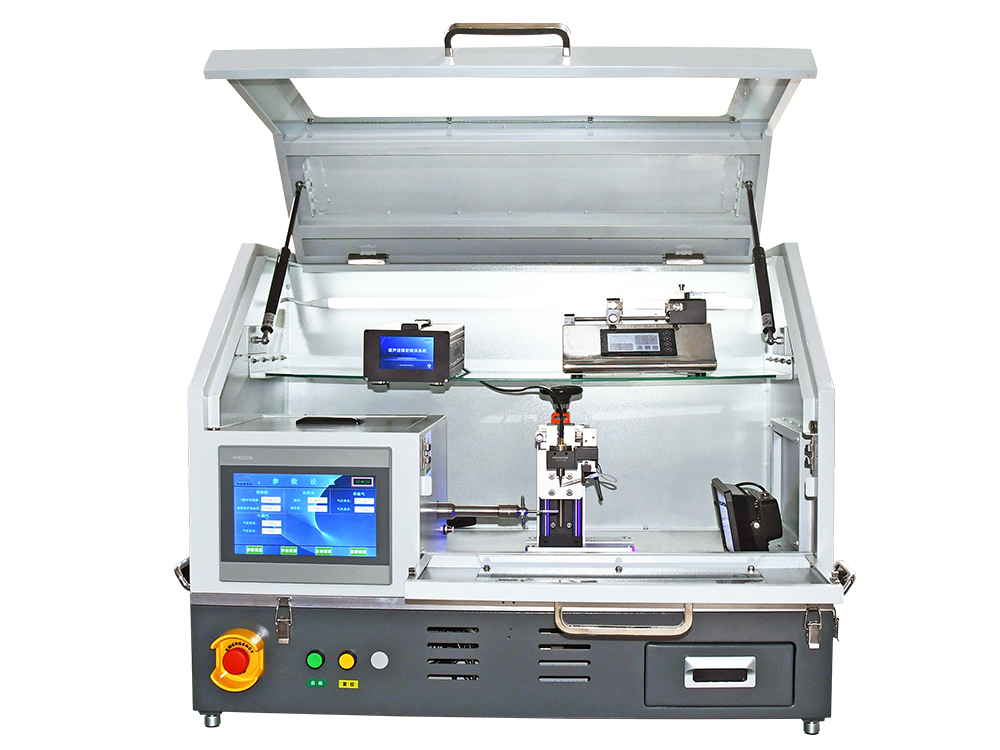

    Benchtop Ultrasonic Stent Coating System FS1006 (1)

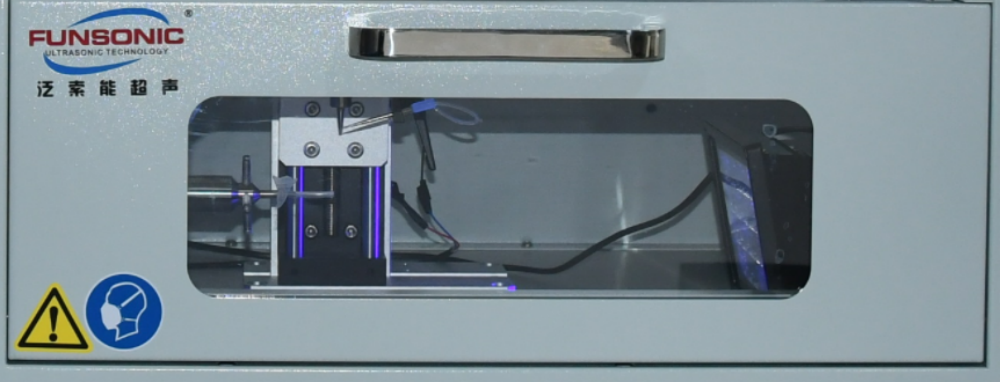

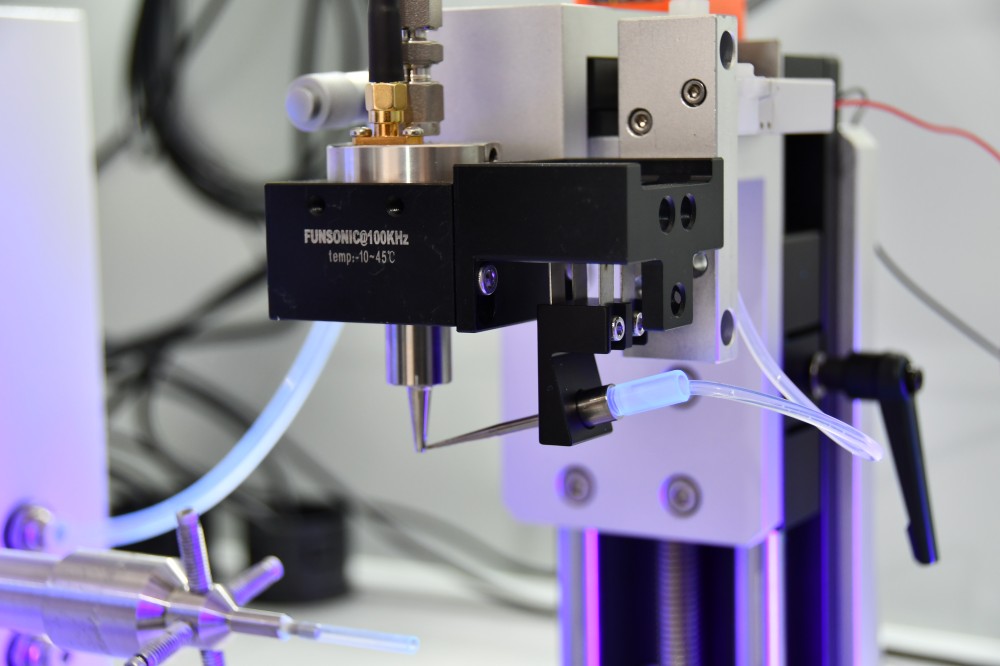

    Benchtop Ultrasonic Stent Coating System FS1006 (2)
    Benchtop Ultrasonic Stent Coating System FS1006 (1)

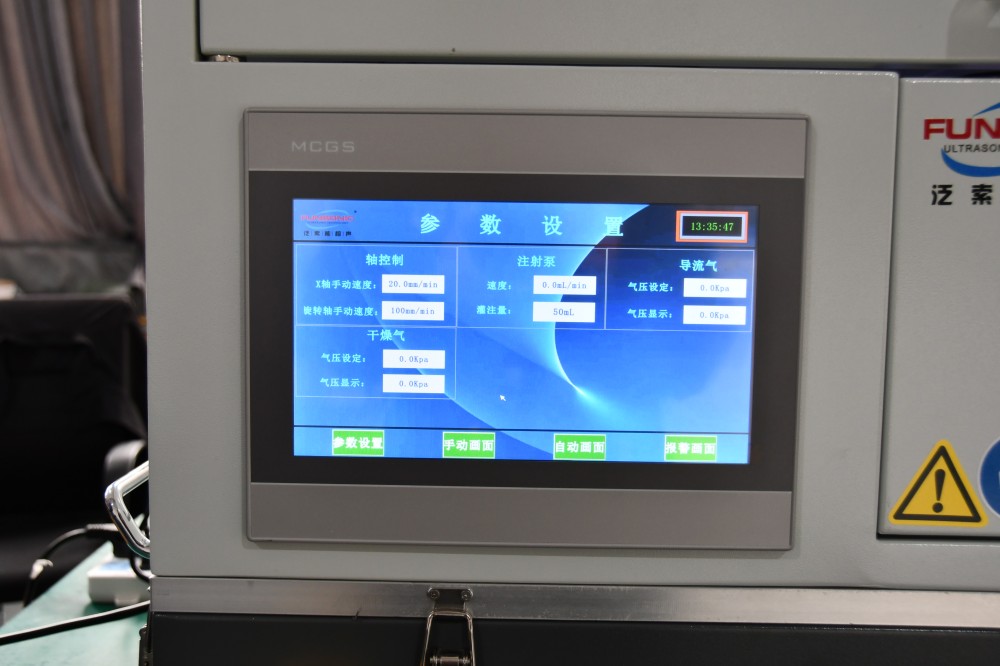

    Benchtop Ultrasonic Stent Coating System FS1006 (4)

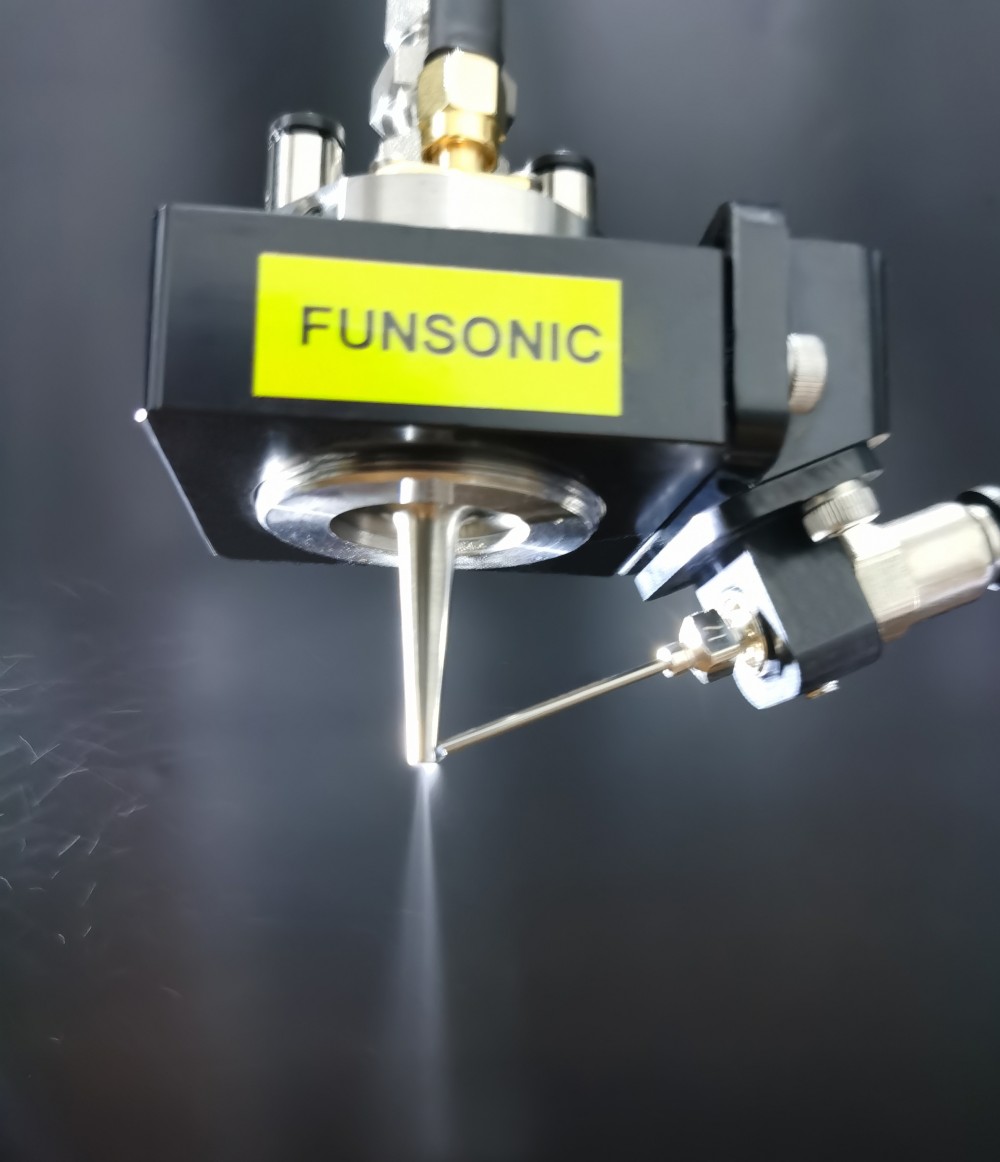

    Benchtop Ultrasonic Stent Coating System FS1006 (3)

    Product Application

    1. New energy: fuel cells, membrane electrodes, thin-film solar cells, proton exchange membranes, lithium battery separators, perovskite solar cells, solar photovoltaic silicon wafers, etc;

    2. Medical: balloon catheter, blood collection tube injector, stent, biosensor, microfluidic chip, heart valve, antibacterial coating, etc;

    3. Microelectronics and semiconductors: silicon carbide bonding, soldering flux, photoresist coating, conductive coating, hydrophilic and hydrophobic coating, conductive ink, PI, PET, etc;

    4. Glass production: Glass coating, float glass, photovoltaic glass, photoluminescent film, transparent conductive, electrochromic, etc.:

    5. Nanotechnology: carbon nanotubes, polymer fibers, nano membranes, carbon nanotube membranes, MXenes、 Graphene composite materials, etc

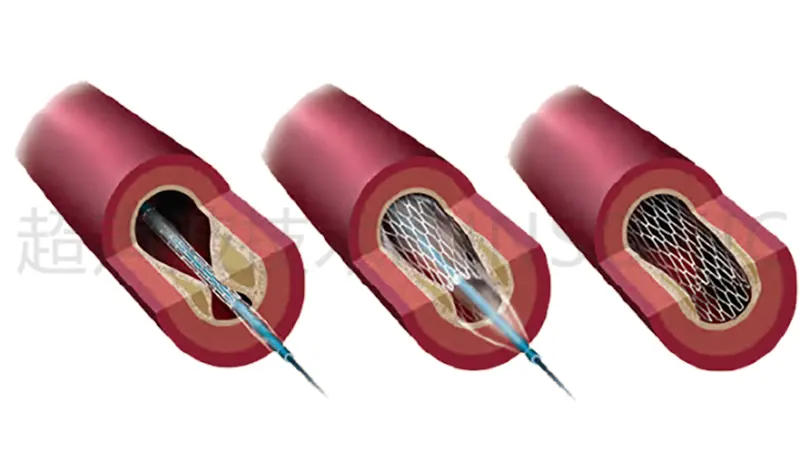

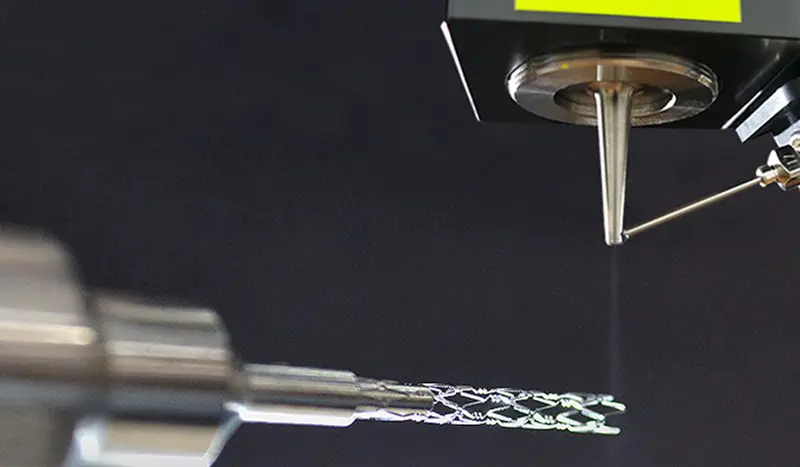

    1005 (1)
    1005 (1)

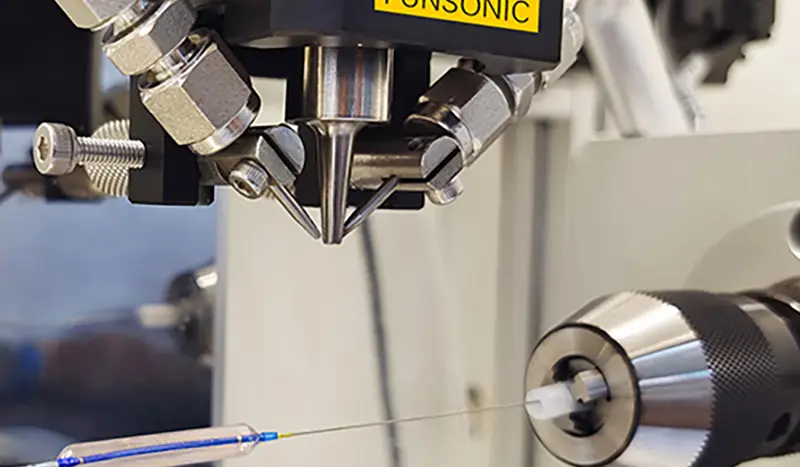

    1005 (2)
    1005 (2)

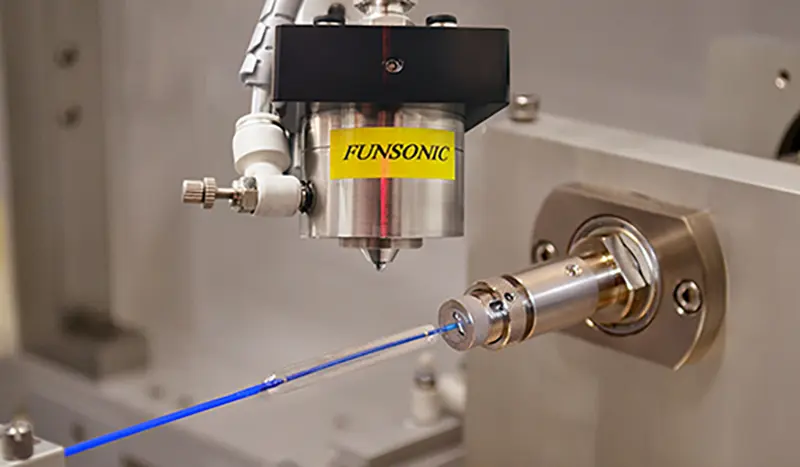

    1005 (3)
