Benchtop Ultrasonic Spray Coating System FS620

Request a Quote

Short Description

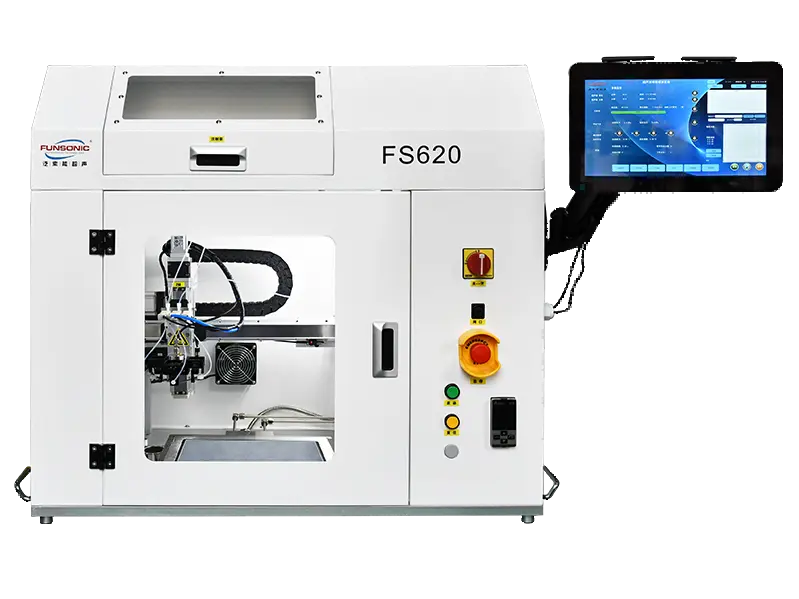

Benchtop Ultrasonic Spray Coating System FS620 is mainly used for qualitative testing in scientific research laboratories, small and medium-sized production, and medium area. The entire device has a simple and elegant structure, complete functions, mainly including XYZ three-axis precision motion module, equipped with FUNSONIC's self-developed ultrasonic spraying special control system, WYSIWYG, realizing a comprehensive trajectory editing system with matching functions, and realizing the spraying function of any two-dimensional plane shape, such as rectangle, circle, triangle or curve. It can be equipped with any ultrasonic nozzle from FUNSONIC, as well as precision constant flow injection pump, digital carrier gas system, ultrasonic dispersion supply system, vacuum adsorption heating substrate and other functions.

Parameters

● Frequency of Spray Nozzle: 20-200Khz for option

● Nozzle Type: Widemist, Scattering, Focusmist, Penetrator, Micromist, Conemist etc (or Customized)

● Continuous Spray Volume : 0.01-50ml/min

● Dry Film Thickness: 20nm-100μm

● Spray Uniformity: ≥95%

● Solution Conversion Rate: ≥95%

● Spraying Area : 300*300mm (Maximum 400*400mm)

● Size: 1100*850*950mm

Advantage

High Material Utilization Rate

Ultrasonic atomization spraying can achieve several times the utilization rate of traditional spraying, effectively reducing material costs
Nano Scale Film Thickness

The thinnest film thickness that can be prepared by ultrasonic atomization spraying can reach tens of nanometers, with highly consistent uniformity
Non Pressure Atomization

Atomization is generated through high-frequency ultrasonic vibration, without the involvement of air pressure, effectively avoiding the impact of high air pressure on the substrate

Product Configuration

Conventional Arrangement

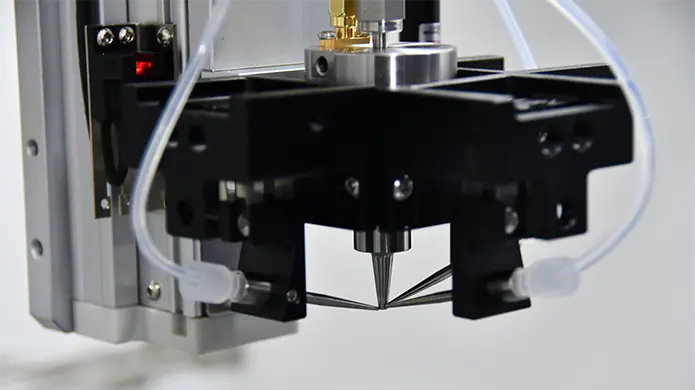

1. Ultrasonic nozzle: optional 20-200Khz multiple nozzle systems

2. Ultrasonic power supply: fully CNC precision power supply, fully intelligent frequency following, frequency tracking, stable performance

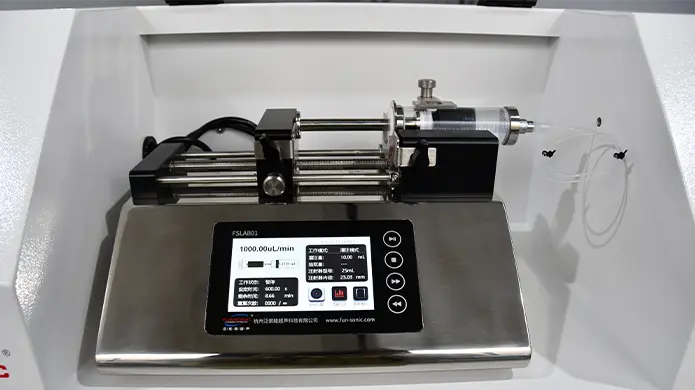

3. Liquid supply equipment: precision injection pump+biological grade sampler, liquid supply accuracy of 0.1 μ L/min

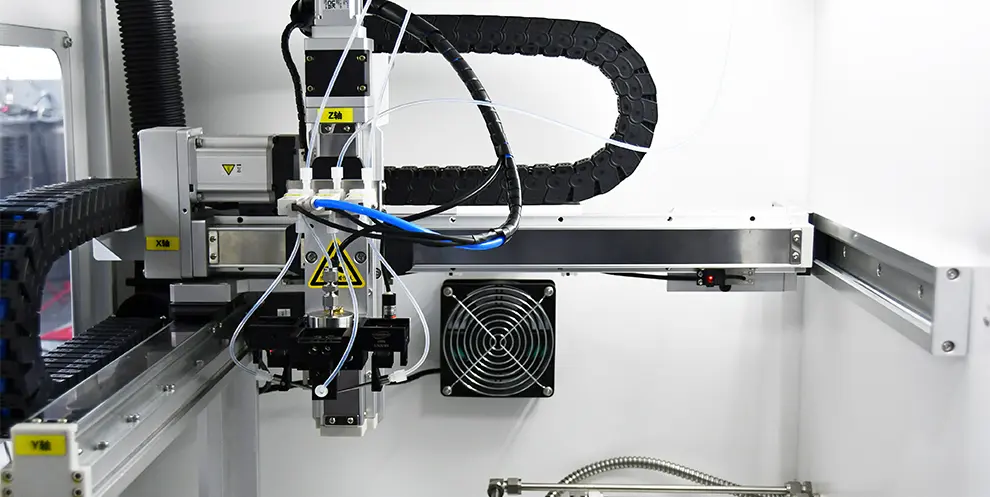

4. Sports system: XYZ three-axis imported servo motor+fully enclosed precision screw module

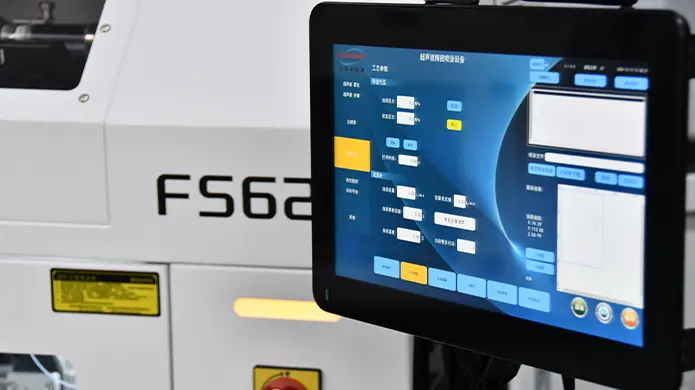

5. Operating System: Based on the Windows system, FUNSONIC independently developed a spraying control system, PLC control, and full-color touch screen
Optional Configuration

1. Ultrasonic dispersion liquid supply system: It can continuously disperse and stir nanoparticles during the spraying process, effectively reducing the precipitation phenomenon of the spraying liquid and greatly improving the uniformity of the film layer

2. Heating and drying platform: using aviation aluminum porous platform or precision microporous ceramic platform, precise temperature control of 200 ℃ (higher heating temperature can be customized)

3. Vacuum adsorption platform: equipped with multiple vacuum generators, can be controlled by zones, and accurately adsorbs film substrates without deformation.

4. Nozzle alignment device: using laser alignment to quickly align the material spraying position.

We can also customize other configurations according to your needs.

Product Application

FS620 ultrasonic spraying equipment is mainly used in industries such as fuel cells, thin-film photovoltaic cells, thin-film solar coatings, perovskite solar cells, solar cells, graphene coatings, silicon photovoltaic cells, glass coating, electronic circuits, etc. The nozzle can be used for various solutions, even for atomization of sewage, chemical liquids, and oil mucilage.
