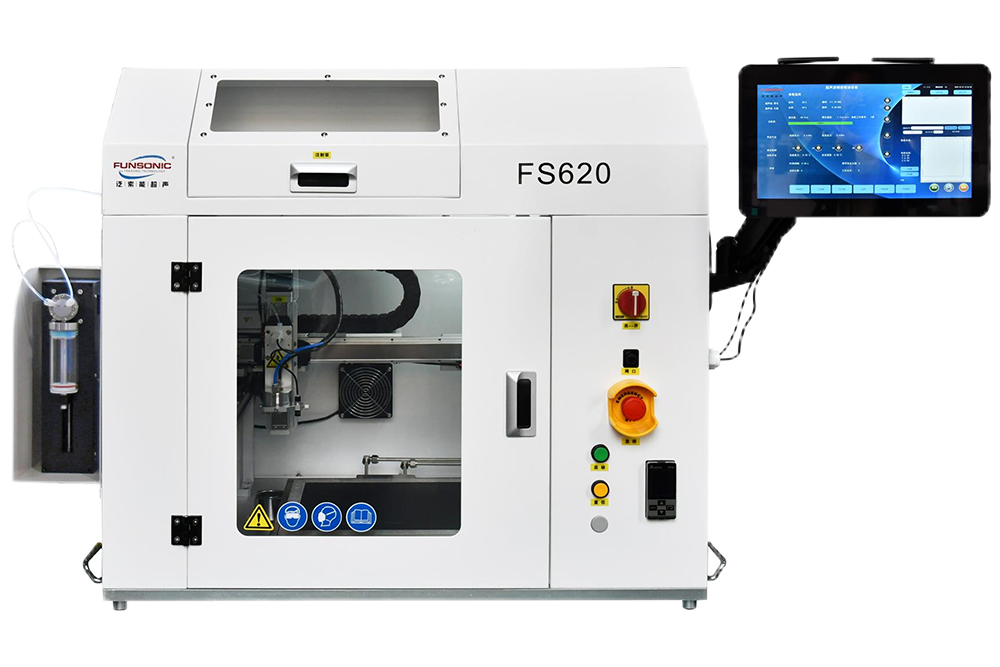

Benchtop Automatic Flow Ultrasonic Coating System FS620A
Advantage
Product Configuration
-
Conventional Arrangement
1.Ultrasonic nozzle: 20-200Khz
2.Nozzle Type: Widemist K Series, Scattering D Series, Focusmist Z Series, Micro Spray L Series etc
3.Ultrasonic Generator: fully CNC precision power supply
4.Liquid supply equipment: Automatic Flow Injection Pump+biological grade sampler, liquid supply accuracy of 0.1 μ L/min

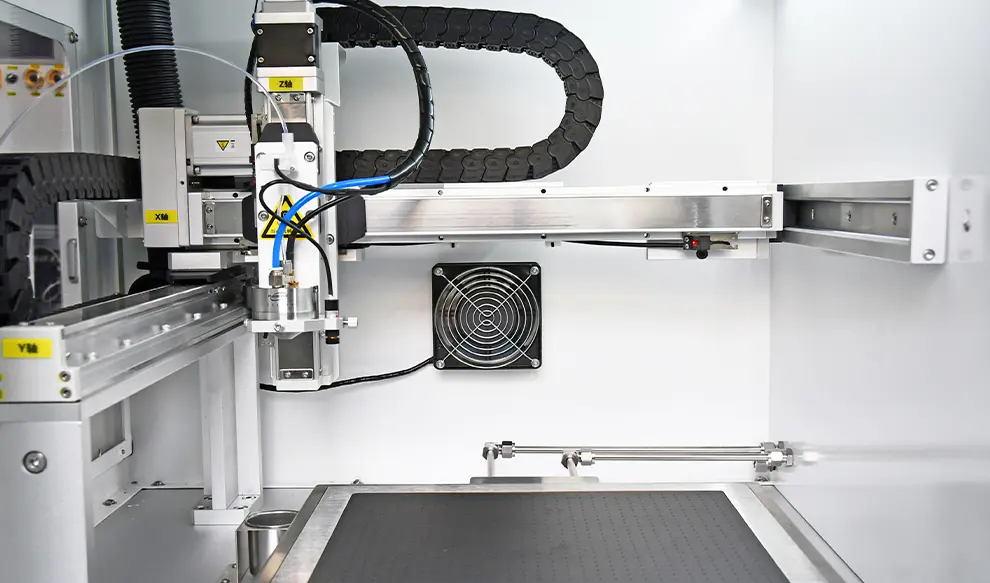

5.Sports system: XYZ three-axis imported servo motor+fully enclosed precision screw module

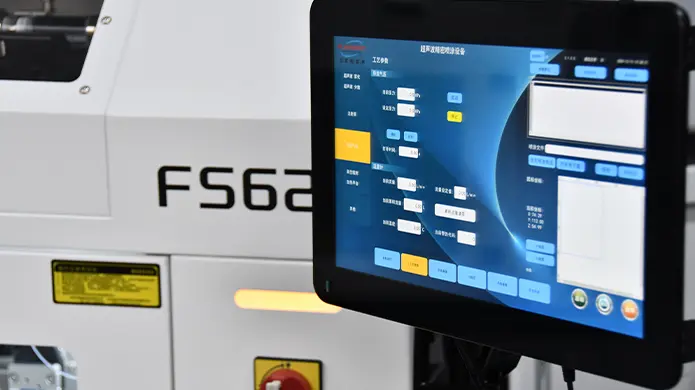

6.Operating System: PLC control, and full-color touch screen
-
Optional Configuration

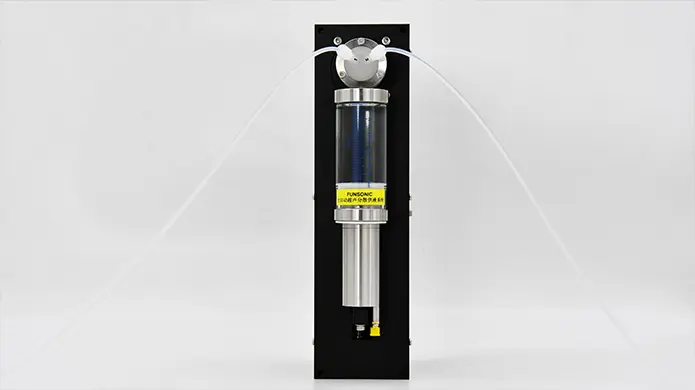

1.Ultrasonic dispersion liquid supply system: It can continuously disperse and stir nanoparticles during the spraying process, effectively reducing the precipitation phenomenon of the spraying liquid and greatly improving the uniformity of the film layer

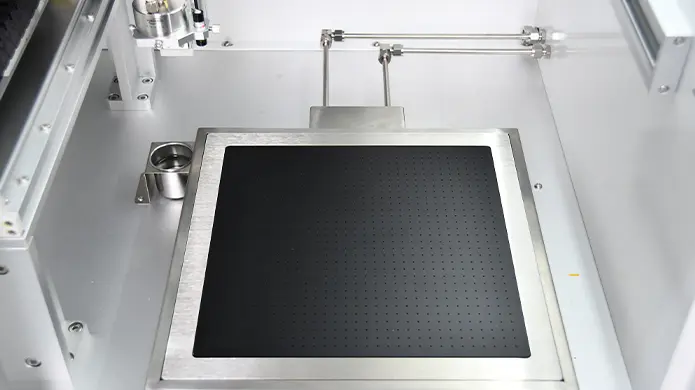

2.Heating and drying platform: aluminum porous platform or precision microporous ceramic platform for optional, 200 ℃ (higher heating temperature can be customized)
3.Vacuum adsorption platform: equipped with multiple vacuum generators, can be controlled by zones, and accurately adsorbs film substrates without deformation.
4.Laser alignment device: using laser alignment to quickly align the material spraying position.
We can also customize other configurations according to your needs.
Product Application
2. Electronics industry: Coating protection on circuit boards and components.
3. Medical equipment: Coating medical devices to ensure hygiene and durability.
4. Home appliances: Applied to the spraying of home appliance shells to improve aesthetics and durability.
