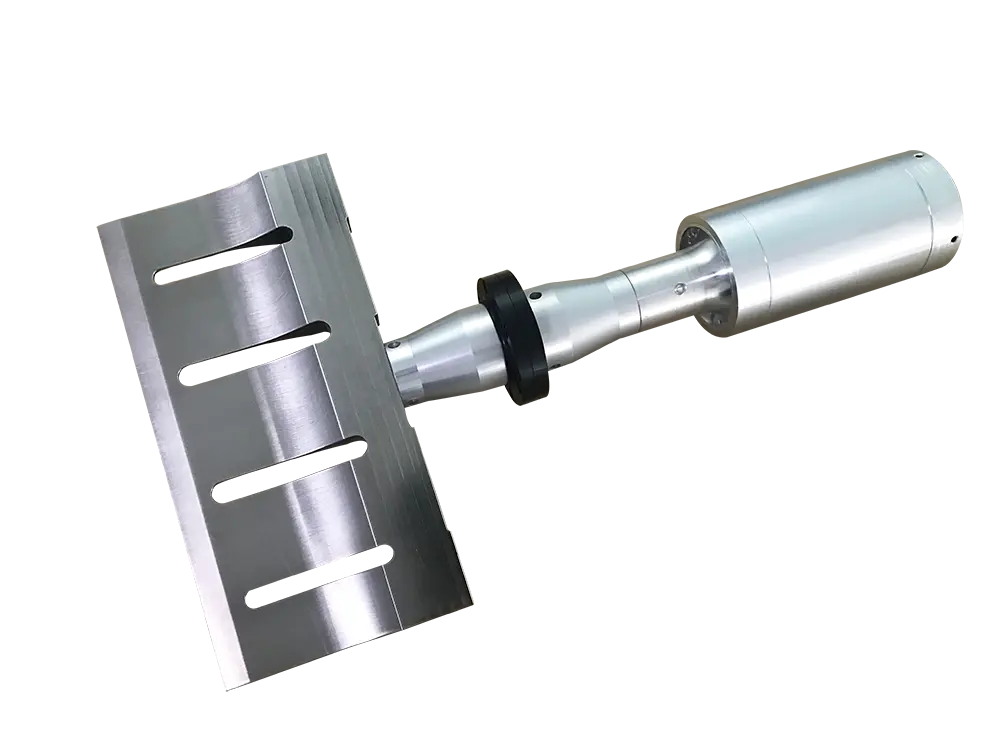

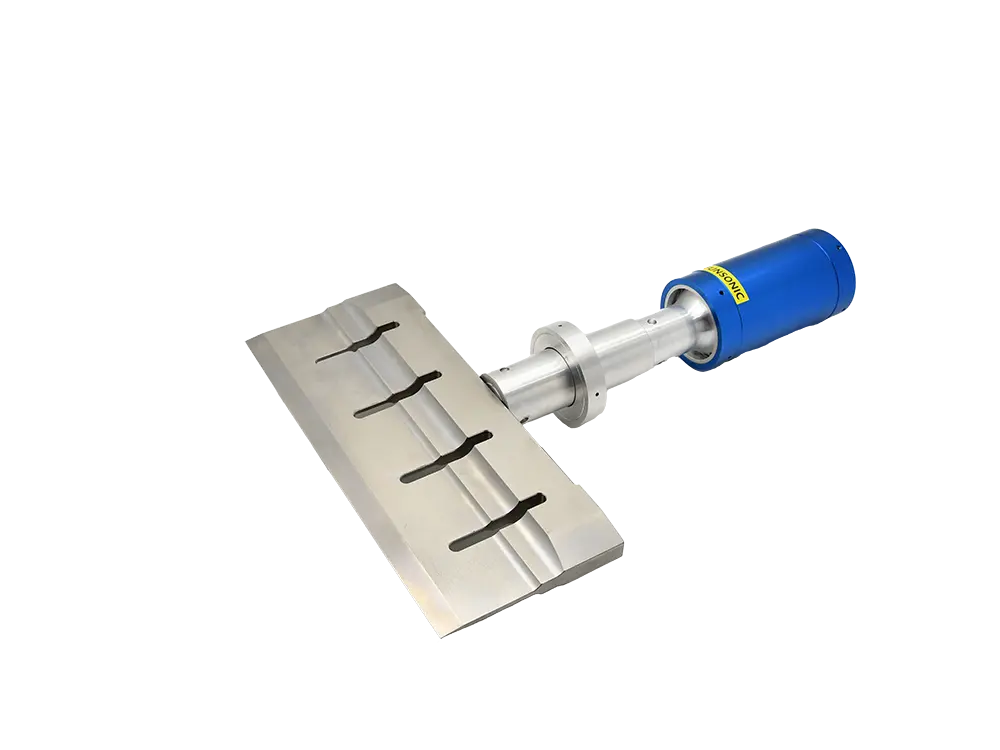

20Khz Ultrasonic Food Cutting Machine

◆ Frequency: 20Khz(other frequency can be customized)

◆ Power: 500-1000w

◆ Voltage:220V/50Hz

◆ Maximum cutting thickness: 80mm

◆ Materials of blade: Titanium alloy

◆ Width of blade: 255mm (customized)

◆ Working mode: intermittent/continuous

    Contact us

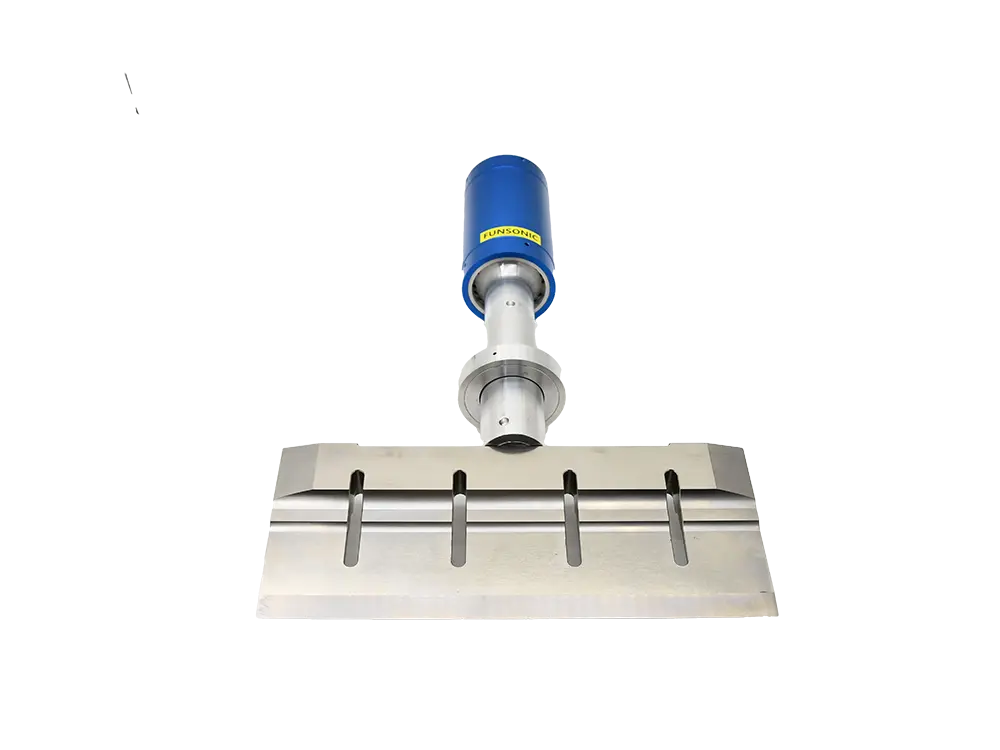

    20Khz 255mm

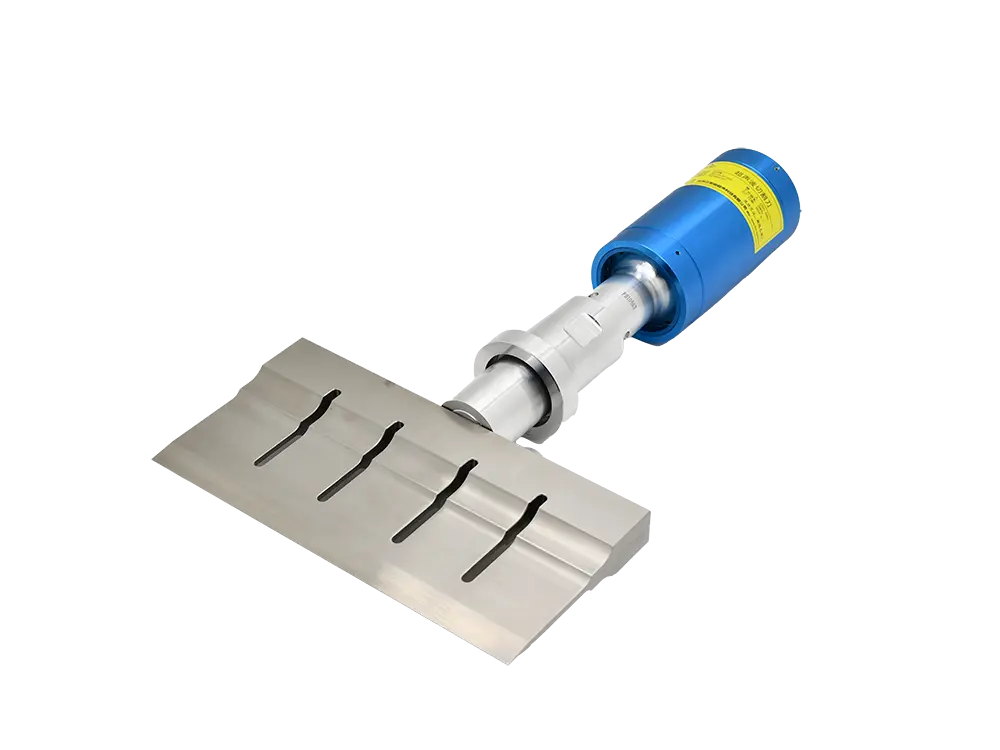

    20Khz 305mm

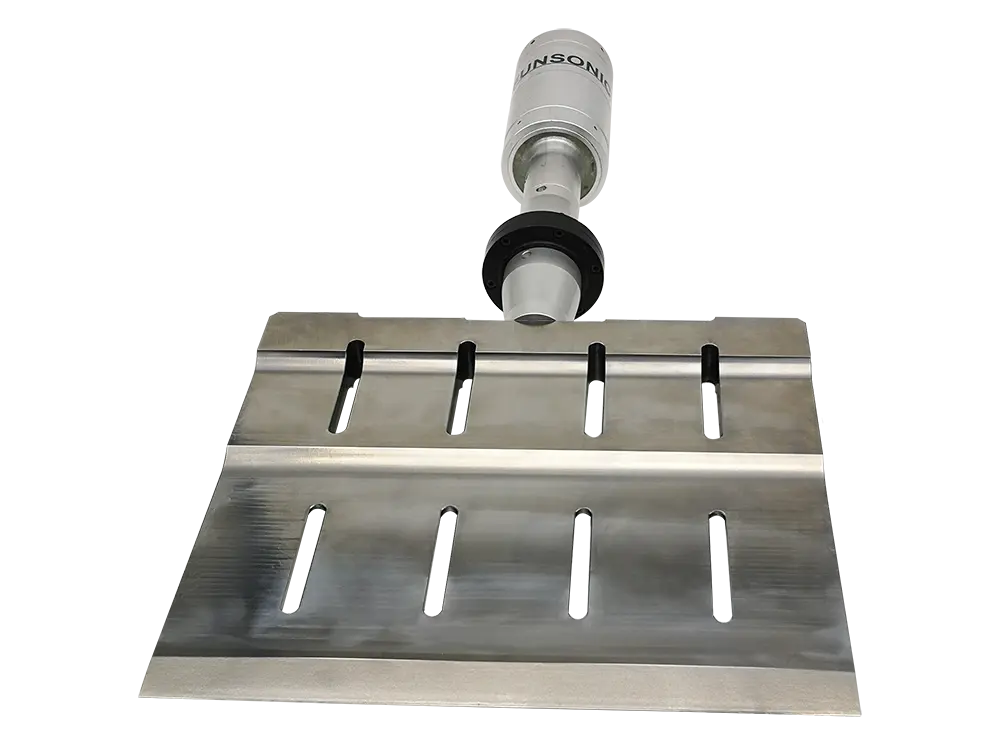

    20Khz 305mm Full wavelength
    20Khz 355mm
    123
    123
    123
    123
    Contact Us

    Short Description

    The principle of ultrasonic food cutting knife is to convert 50/60Hz current into 20, 30 or 40kHz electrical energy through an ultrasonic generator (ultrasonic power supply). The converted high-frequency electrical energy is converted back into mechanical vibration of the same frequency through a transducer, and then the mechanical vibration is transmitted to the cutting blade through a set of amplitude modulation devices that can change the amplitude. The ultrasonic food cutting knife vibrates along its length direction with an amplitude of 10-70 μ m, taking 40Khz as an example, and repeats 40000 times per second (40 kHz) (the vibration of its blade is microscopic and generally difficult to see with the naked eye).

    Advantages

    ● Non stick food knife: Ultrasonic cutting equipment has an automatic cleaning function, which can shorten the cleaning time by 70% to 90% compared to traditional cutting systems. (With 20000 high-speed micro vibrations per second, the blades will not be contaminated with food, which can minimize the downtime of washing the blades when using existing other automatic cutting equipment.)

    ● By using 20000 ultrasonic vibrations per second, the friction between food and the blade is reduced to a minimum, thereby improving the production efficiency of cutting operations.

    ● Ensure that the incision is neat, smooth, and not deformed, enhancing the appearance and value of the product. (Provide a good cutting surface).

    ● Reduce the generation of debris during food cutting and minimize downtime for cleaning.

    ● The blade body is made of titanium alloy material, which is durable and long-lasting.

    ● During the cutting process, food does not need to be stopped, and continuous cutting is maintained to further improve production efficiency.

    ● It can easily cut pastry materials or products that are difficult to cut using ordinary cutting methods, and the cut surface is neat and smooth, making it more widely used.

    ● Pollution free: When cutting, the blade temperature is below 50 ℃, and there will be no smoke or odor, eliminating the risk of injury and fire during cutting.

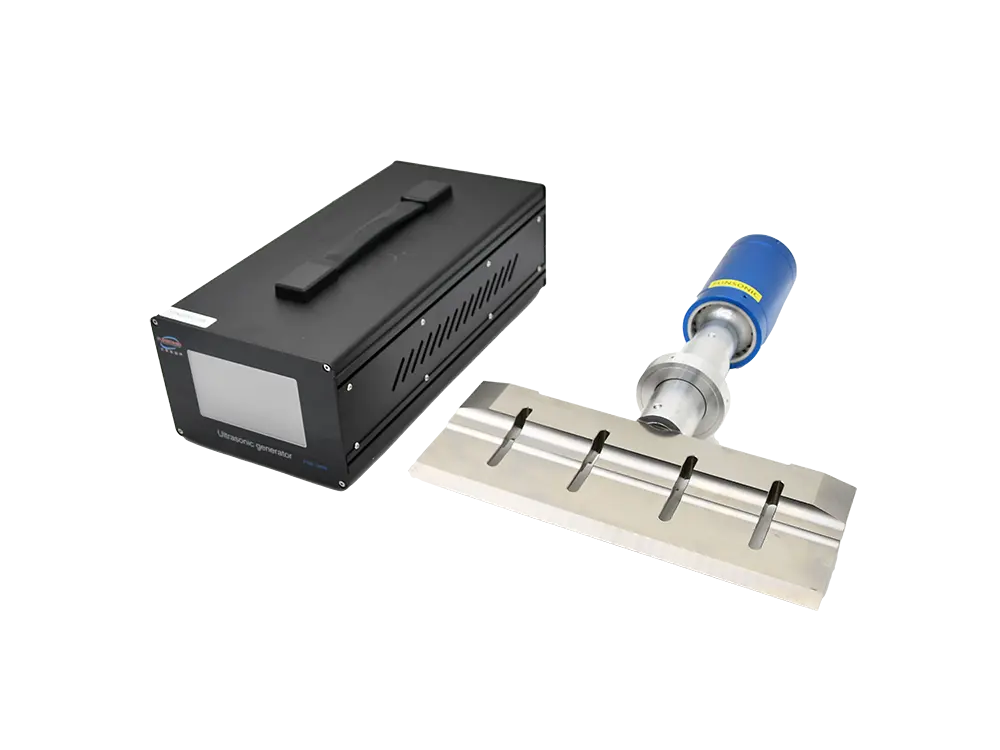

    ● Easy to operate: Connect the cutting blade to an ultrasonic generator, connect the generator to 220V mains power, turn on the switch to perform cutting, support handheld cutting and equipped with an air-cooled interface.

    ● Small size, no need for a large installation area, and no special equipment required for installation.

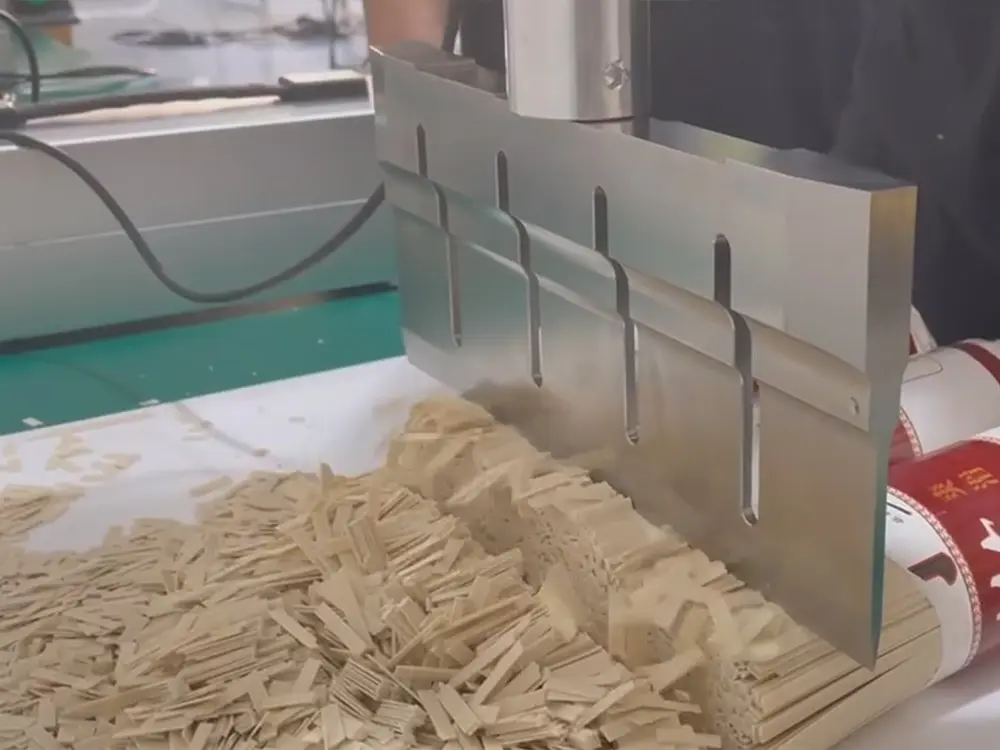

    Demonstration

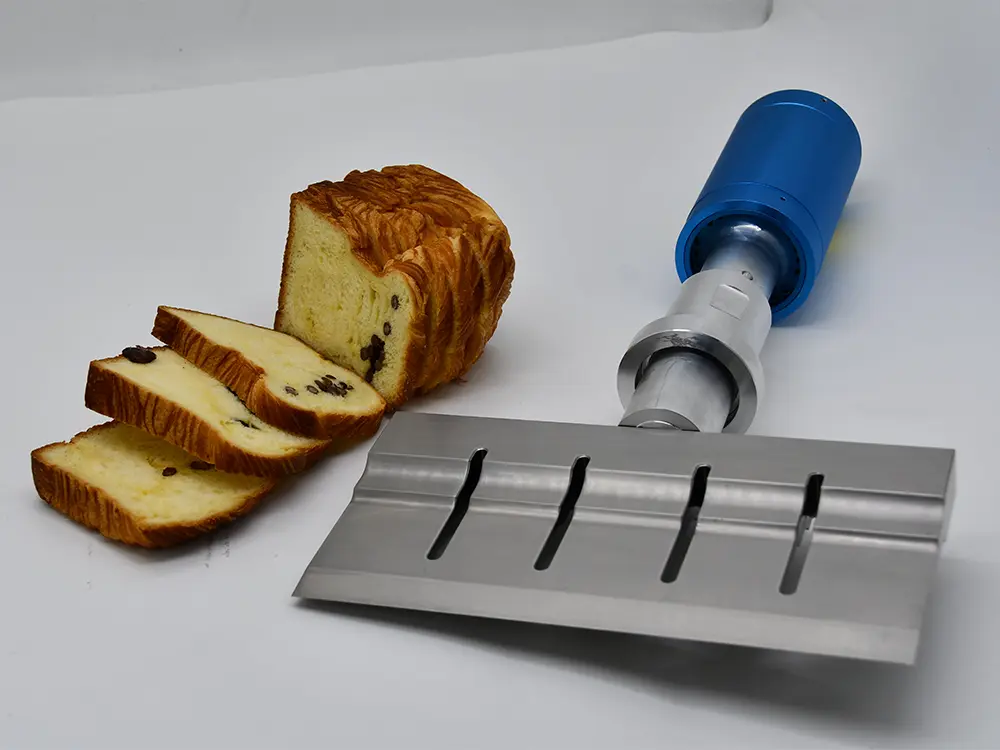

    20Khz Ultrasonic Food Cutting Machine (1)

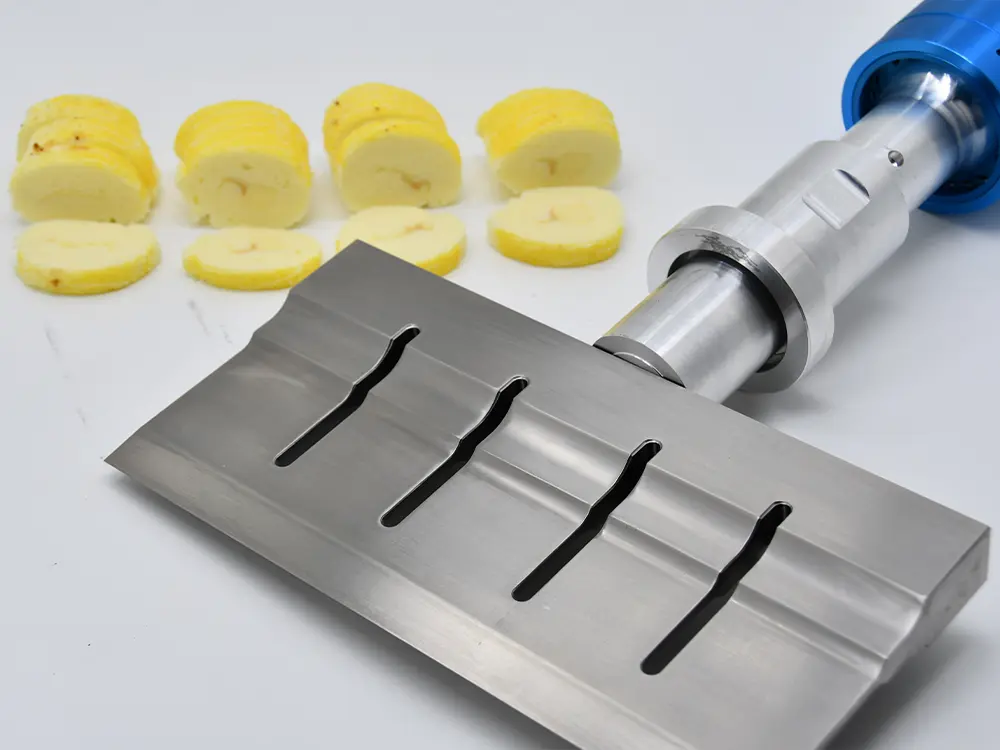

    20Khz Ultrasonic Food Cutting Machine (2)

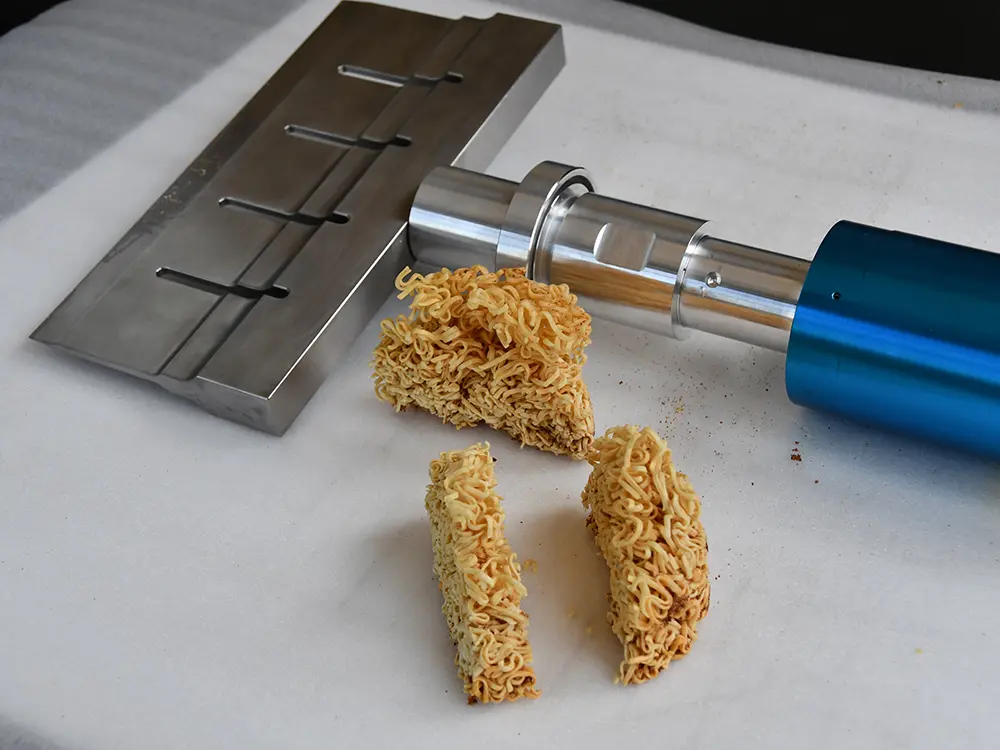

    demo
    20Khz Ultrasonic Food Cutting Machine (4)
